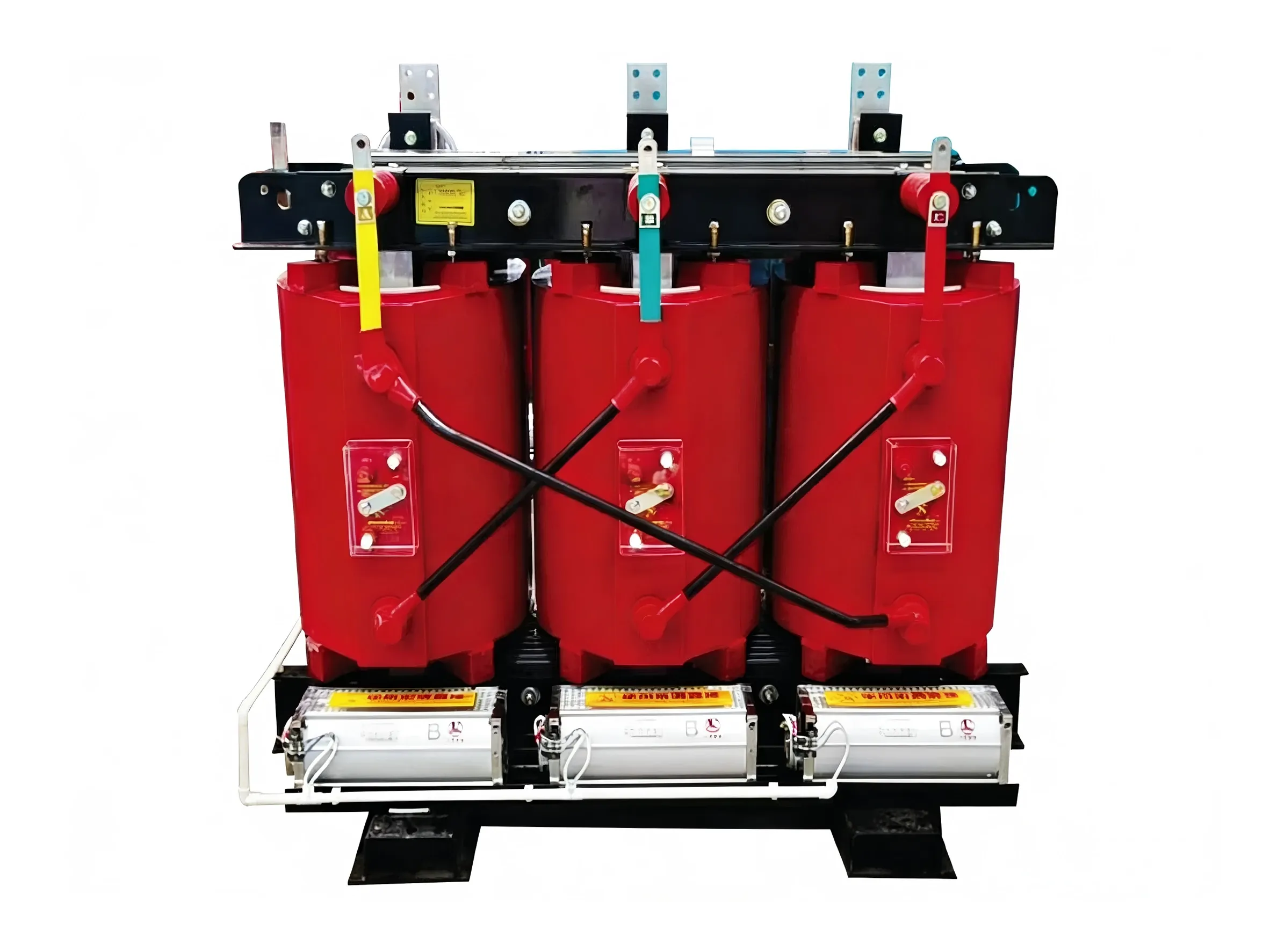

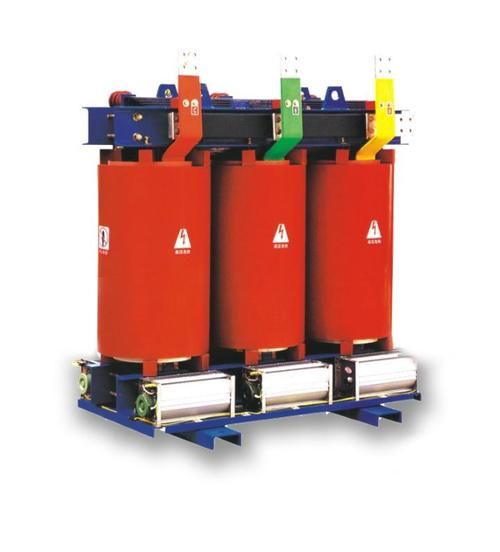

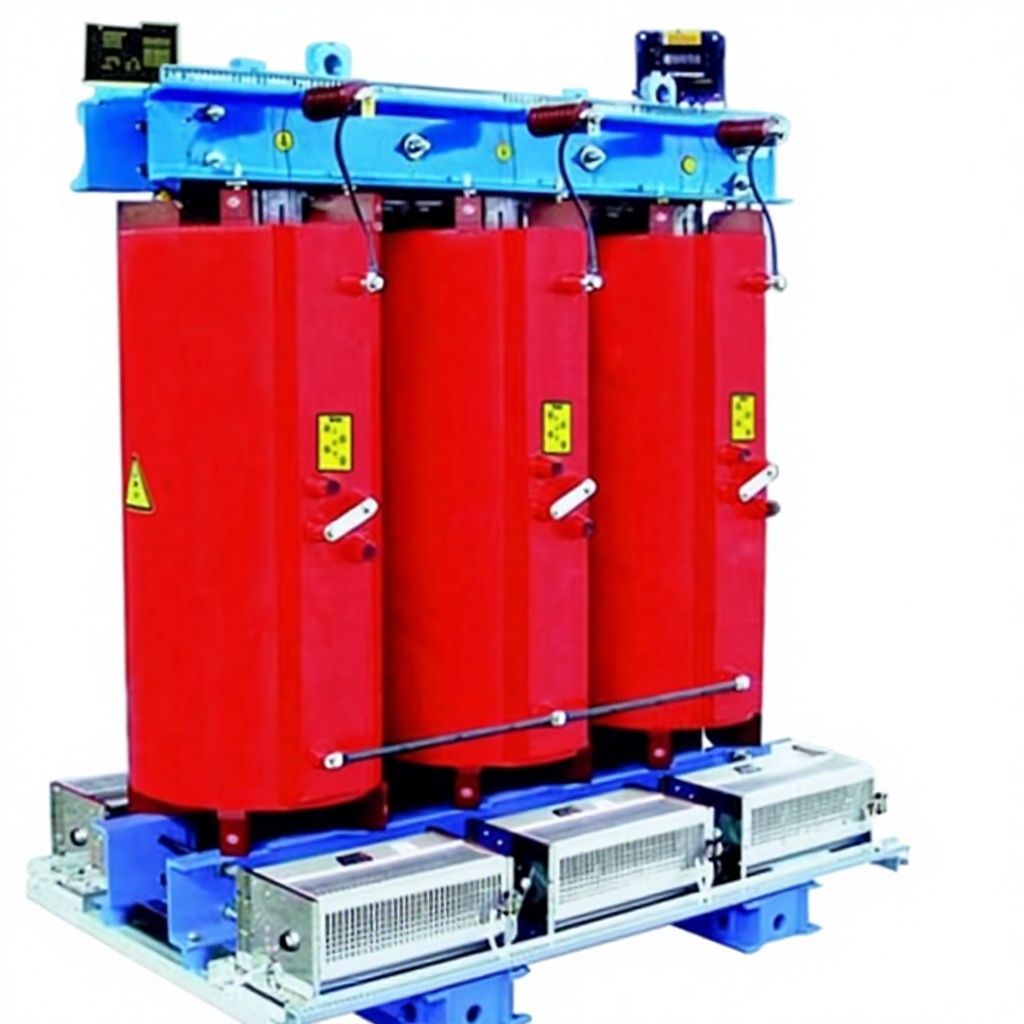

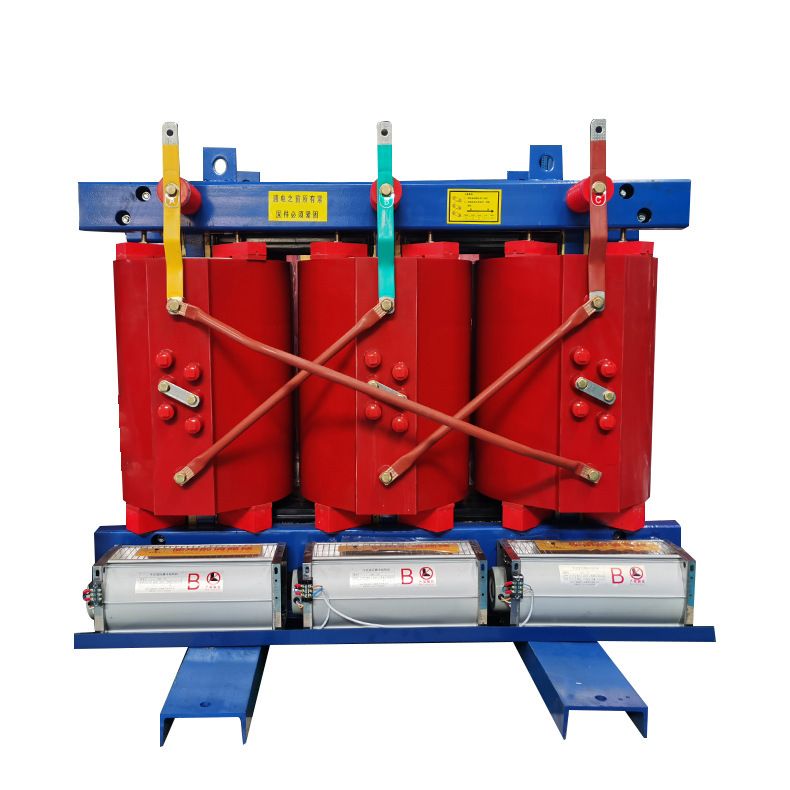

SCB14 Super-High Efficiency Cast Resin Dry-Type Transformer (30kVA-3500kVA)
The elite SCB14 series dry-type transformer (30kVA-3500kVA, 50/60Hz). Engineered with cutting-edge low-loss materials to deliver industry-leading energy efficiency, zero-maintenance, and peak reliability for modern green grids
100% Pure Copper
Guaranteed premium copper windings for superior thermal performance and longevity.
7-Day Rapid Shipping
Industry-leading lead times to keep your infrastructure projects on schedule.
Detailed Description
Technical Parameters
| Series Model | SCB14 Super-High Efficiency Series |
| Rated Capacity | 30 kVA - 3500 kVA |
| Rated Frequency | 50 Hz / 60 Hz |
| Primary Voltage | 6kV / 10kV / 11kV / 20kV / 33kV / 35kV |
| Secondary Voltage | 0.4kV / 0.415kV / 0.433kV |
| Insulation Class | Class F (155°C) / Class H (180°C) |
| Cooling Method | AN (Natural Air) / AF (Forced Air) |
| Standard Compliance | IEC 60076, CE, ISO9001 |
Core Advantages
Industry-Leading Efficiency
Features advanced low-loss core design that significantly minimizes energy waste, making it the most energy-efficient choice for green infrastructure
Maximum Safety & Flame Retardancy
Self-extinguishing epoxy resin construction ensures maximum safety against fire and explosion, critical for sensitive urban and interior applications
100% Pure Copper Foil
Uses premium copper foil for both high and low-voltage windings to ensure superior conductivity, thermal resilience, and short-circuit withstand capacity
Maintenance-Free Operation
The solid casting process creates a durable, weather-resistant insulation system that eliminates the need for oil maintenance and minimizes routine up keep
Advanced Vacuum Casting
Precision-engineered vacuum-cast insulation structure prevents moisture, dust, and partial discharge, ensuring an exceptionally long service life
Exceptionally Quiet
Precision core stacking and low-vibration structural design ensure ultra-low noise, making it perfect for office, residential, and noise-sensitive areas

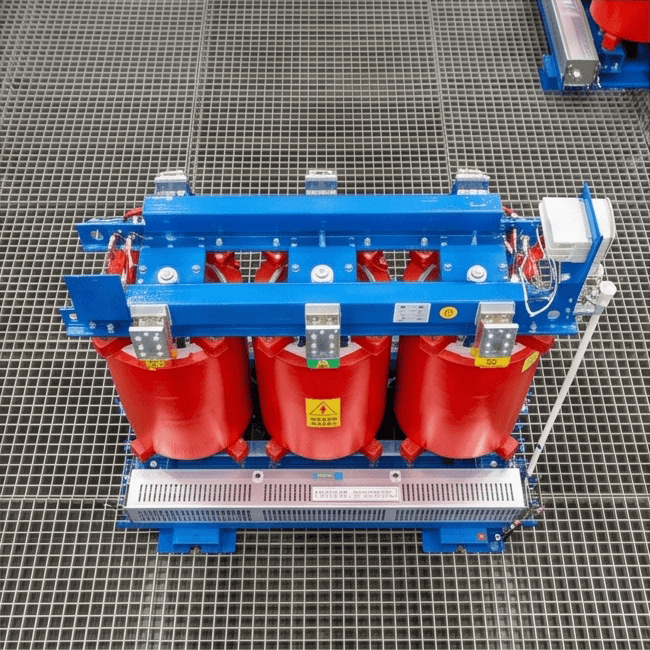

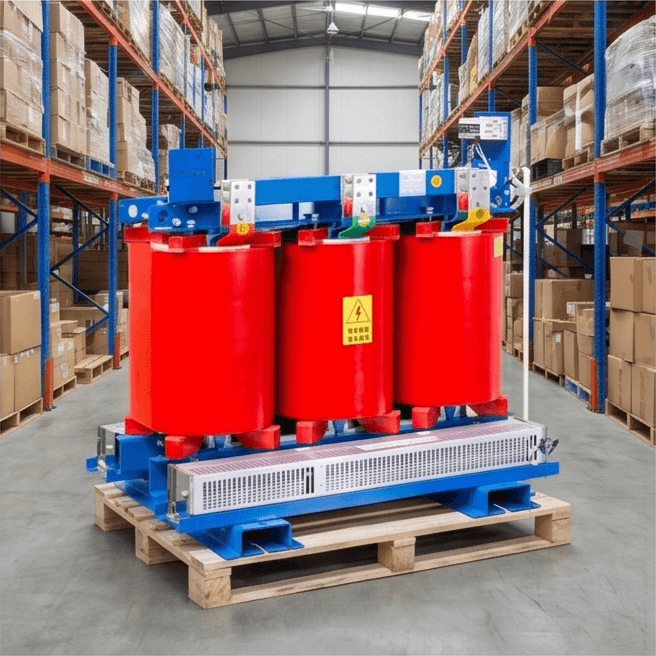

Detailed Display
Logistics Strategy
We understand that safe delivery is as important as the equipment itself. Every unit is securely fastened in reinforced wooden crates or heavy-duty sea-freight packaging to prevent any shifting during transit.
- ✓Moisture-proof vacuum sealing
- ✓Real-time GPS tracking for overseas
- ✓Pre-export factory FAT report included
Expert FAQs
What is your standard delivery time?
For standard units, we can ship within 7 days. Customized configurations typically take 15-25 days.
Do you provide overseas installation support?
Yes, we offer on-site engineering supervision and online technical commissioning support for global projects.
Are your transformers compatible with smart grid systems?
Absolutely. We provide integrated intelligent monitoring systems for real-time load and health analysis.
What certifications do you hold?
Our factory is ISO 9001, ISO 14001 certified, and all products carry the CE mark and local grid compliance reports.
