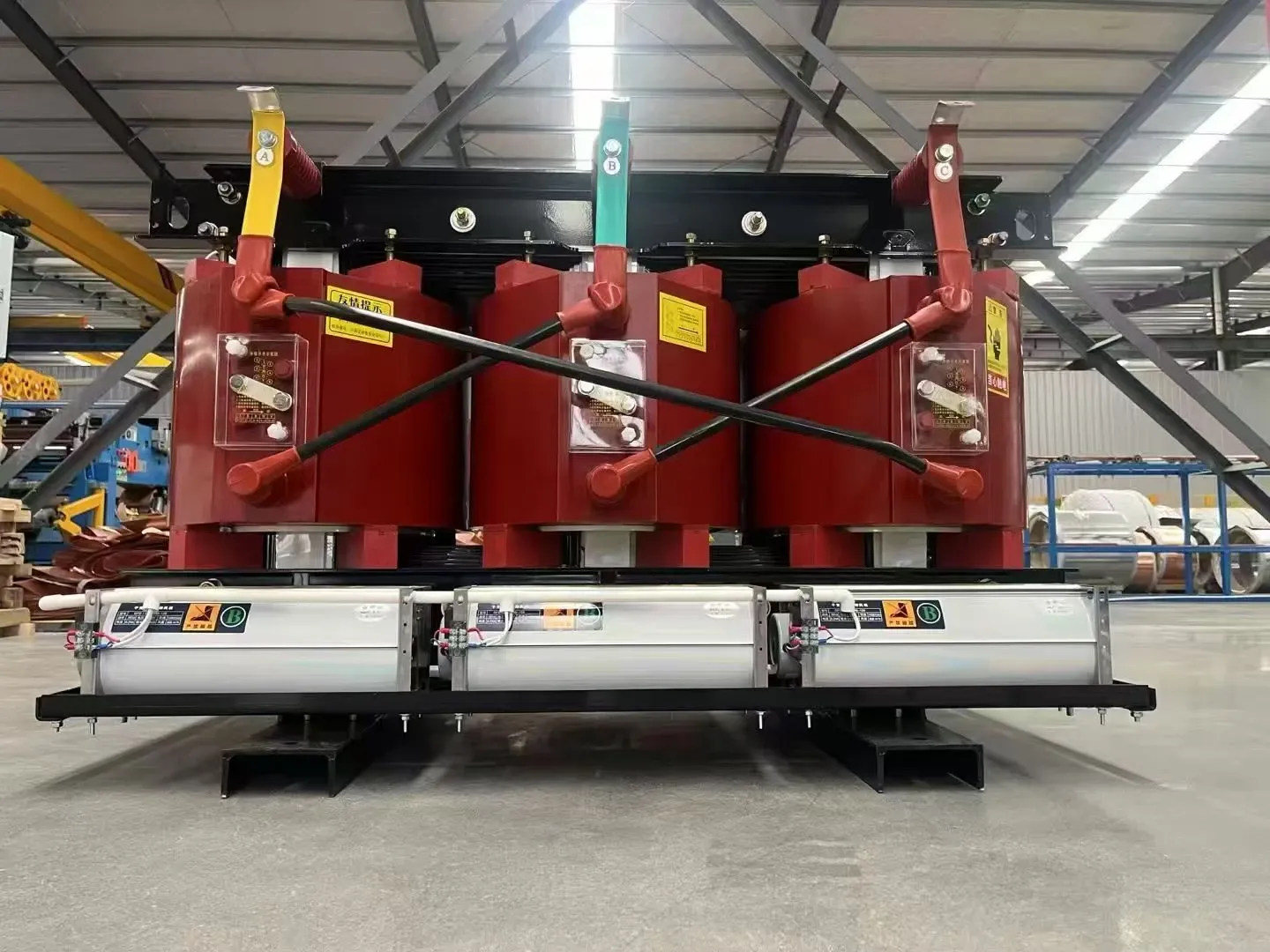

SCB18 Eco-Design Cast Resin Dry-Type Transformer (30kVA-3500kVA, 50/60Hz)
The Haosheng SCB18 series represents the next generation of eco-design cast resin dry-type transformers, offering a wide capacity range of 30kVA to 3500kVA. Fully compatible with global 50Hz/60Hz grids, it delivers ultra-low energy losses, advanced flame retardancy, and maximum operational safety for modern high-density power networks.
100% Pure Copper
Guaranteed premium copper windings for superior thermal performance and longevity.
7-Day Rapid Shipping
Industry-leading lead times to keep your infrastructure projects on schedule.
Detailed Description
Technical Parameters
| Series Model | SCB18 Series (Eco-Design / Ultra-Low Loss) |
| Rated Capacity | 30 kVA - 3500 kVA (Customizable Range) |
| Rated Frequency | 50 Hz / 60 Hz Dual-Frequency Compatible |
| Primary Voltage | 6kV / 10kV / 11kV / 20kV / 22kV / 33kV (Custom Options) |
| Secondary Voltage | 0.4kV / 0.415kV / 0.433kV (Custom Options) |
| Insulation Level | Class F / Class H |

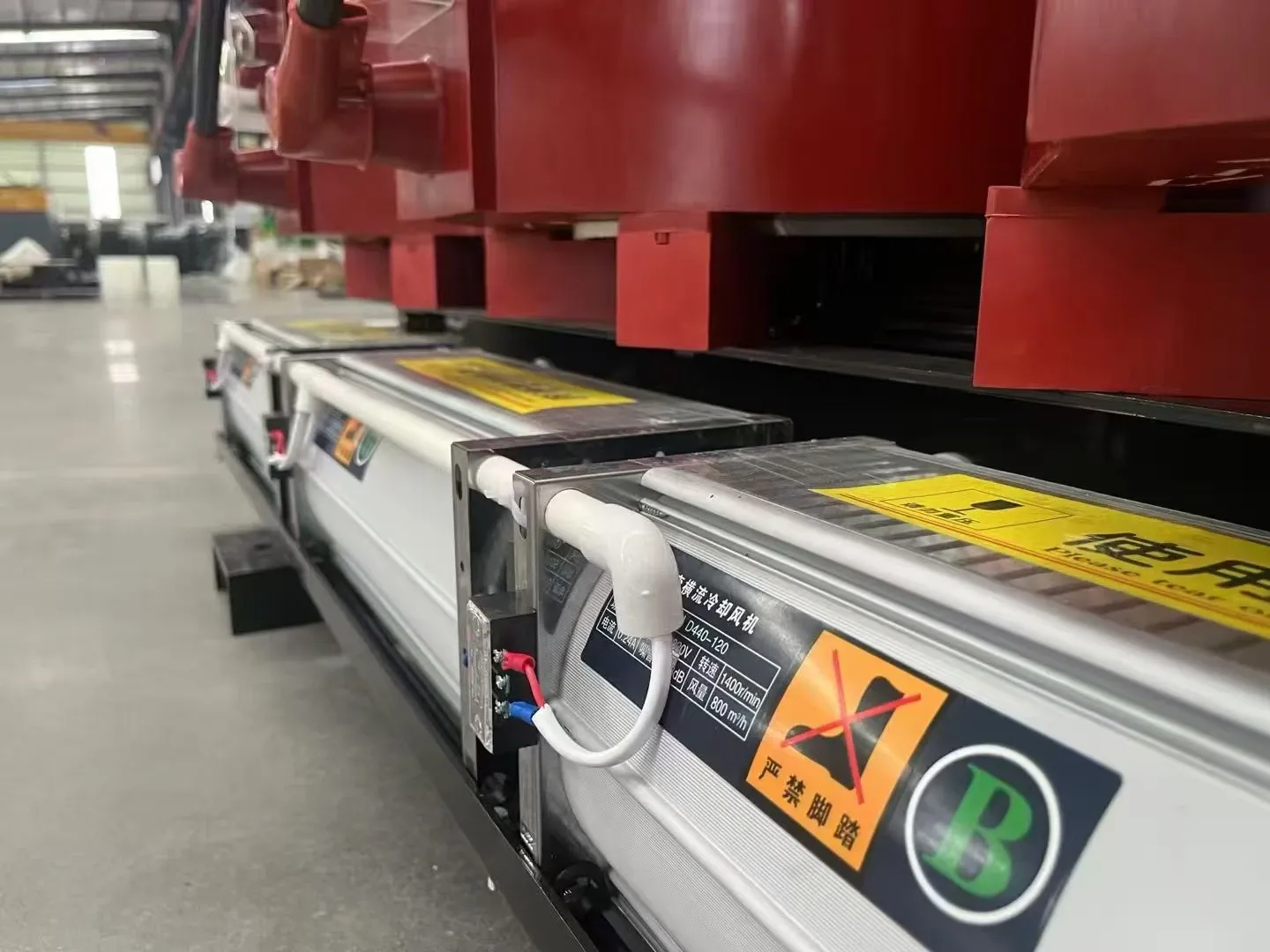

| Cooling Method | AN (Air Natural) / AF (Air Forced) |
| Enclosure Rating | IP00 / IP20 / IP23 (Optional Protective Housing) |
| Winding Material | 100% Pure Copper Foil Winding |
| Standard Compliance | IEC 60076, CE, ISO9001, RoHS |
Core Advantages
Ultra-Low Loss
Laser-treated steel core reduces energy loss to save long-term operational costs
Global Grid Compatibility
Supports dual-frequency 50Hz/60Hz and broad capacity from 30kVA to 3500kVA
High Short-Circuit Resistance
Heavy-duty foil coil structure eliminates axial stress for superior mechanical strength
Vacuum-Cast Resin Insulation
Moisture-proof, anti-fouling, and self-extinguishing for maximum safety in harsh climates
Smart Temperature Control
Built-in PT100 sensors monitor phase temperatures with automatic over-heat alarm and trip
Maintenance-Free & Eco-Friendly
No oil leak hazards and low noise, delivering a robust 20+ year service life

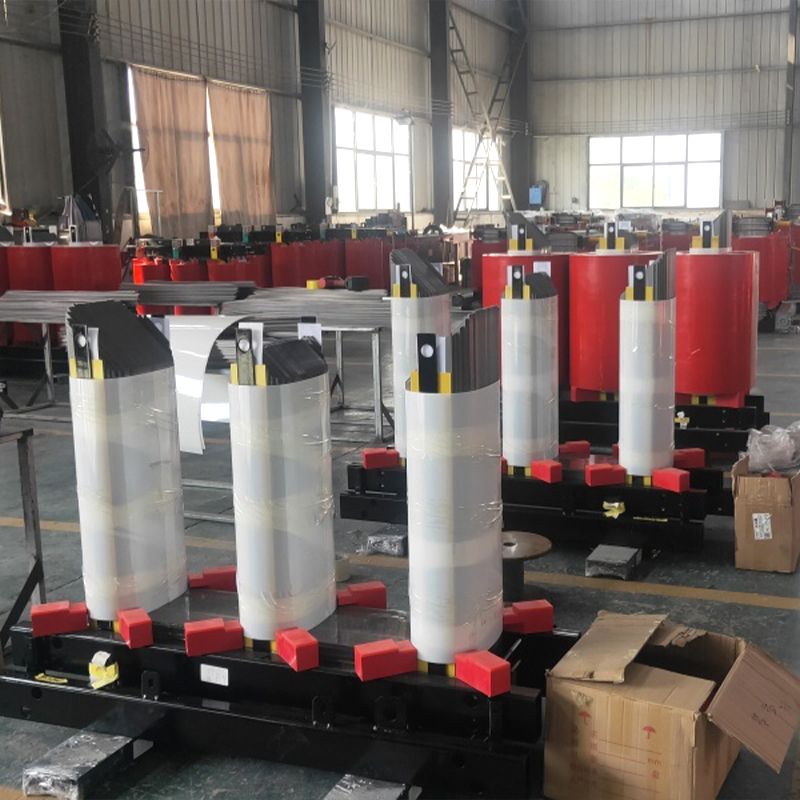

Detailed Display
Logistics Strategy
We understand that safe delivery is as important as the equipment itself. Every unit is securely fastened in reinforced wooden crates or heavy-duty sea-freight packaging to prevent any shifting during transit.
- ✓Moisture-proof vacuum sealing
- ✓Real-time GPS tracking for overseas
- ✓Pre-export factory FAT report included
Expert FAQs
What is your standard delivery time?
For standard units, we can ship within 7 days. Customized configurations typically take 15-25 days.
Do you provide overseas installation support?
Yes, we offer on-site engineering supervision and online technical commissioning support for global projects.
Are your transformers compatible with smart grid systems?
Absolutely. We provide integrated intelligent monitoring systems for real-time load and health analysis.
What certifications do you hold?
Our factory is ISO 9001, ISO 14001 certified, and all products carry the CE mark and local grid compliance reports.
