SCB11 High-Efficiency Cast Resin Dry-Type Transformer (30kVA-3500kVA)
Advanced SCB11 high-efficiency cast resin dry-type transformer (30kVA-3500kVA, 50/60Hz). Offers significantly lower losses, superior flame retardancy, and a maintenance-free design, ideal for energy-conscious indoor power systems under IEC 60076 standards
100% Pure Copper
Guaranteed premium copper windings for superior thermal performance and longevity.
7-Day Rapid Shipping
Industry-leading lead times to keep your infrastructure projects on schedule.
Detailed Description
Technical Parameters
| Series Model | SCB11 High-Efficiency Series |
| Rated Capacity | 30 kVA - 3500 kVA |
| Rated Frequency | 50 Hz / 60 Hz |
| Primary Voltage | 6kV / 10kV / 11kV / 20kV / 33kV / 35kV |
| Secondary Voltage | 0.4kV / 0.415kV / 0.433kV |
| Insulation Class | Class F (155°C) / Class H (180°C) |

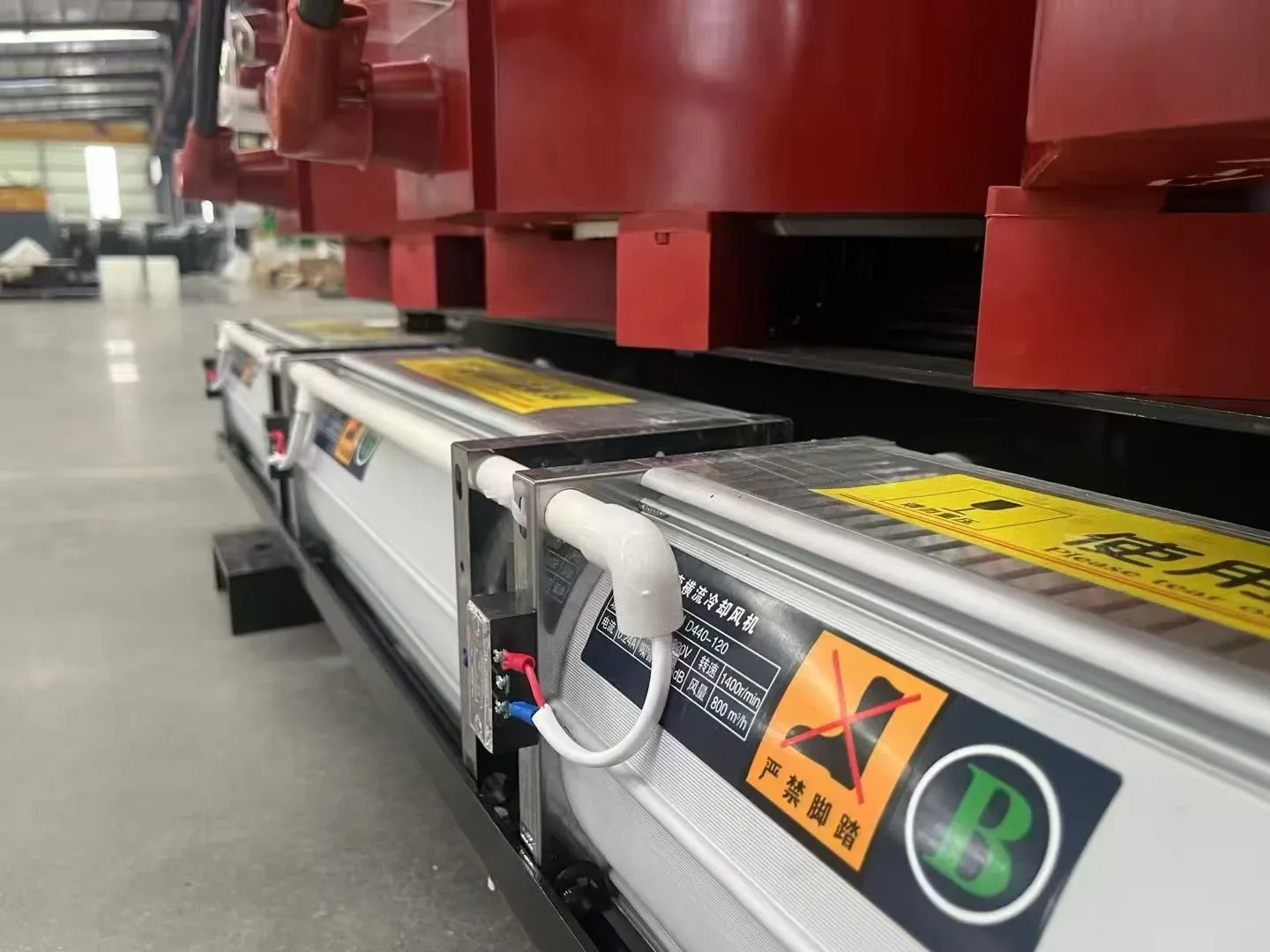

| Cooling Method | AN (Natural Air) / AF (Forced Air) |
| Standard Compliance | IEC 60076, CE, ISO9001, RoHS |
Core Advantages
Enhanced Energy Efficiency

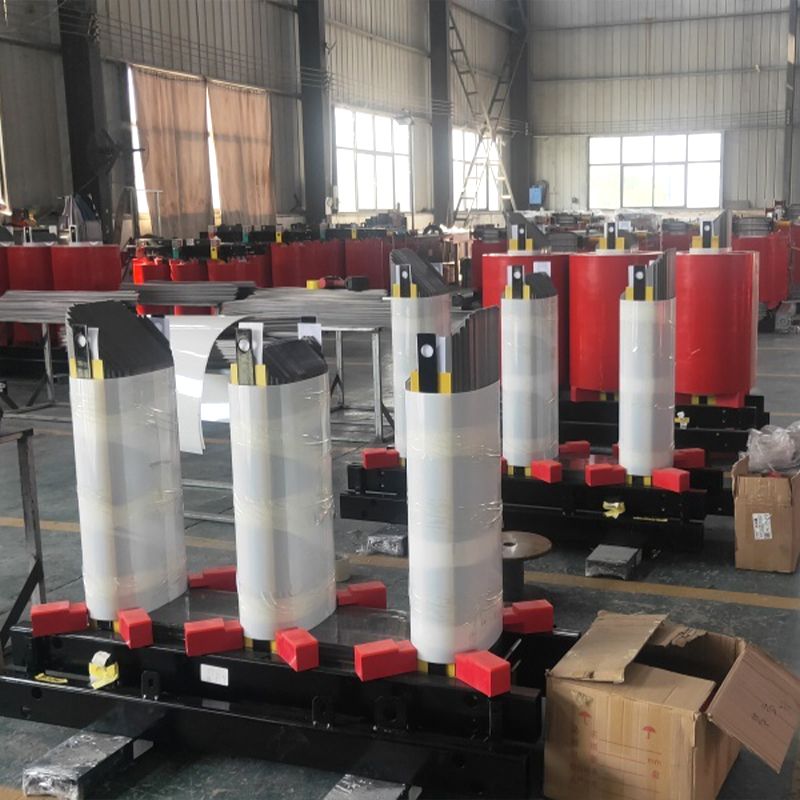

Features an optimized core design that significantly reduces no-load losses compared to standard models, delivering higher energy savings and lower operational costs
Superior Fire & Explosion Safety
Utilizes high-quality, self-extinguishing epoxy resin that is flame-retardant and non-explosive, ensuring maximum safety for high-density indoor environments
100% Pure Copper Construction
Engineered with premium high-conductivity copper for both high and low voltage windings, providing exceptional thermal stability and elite short-circuit resistance
Advanced Vacuum Casting Technology
The vacuum-cast solid insulation ensures a bubble-free structure with zero-partial discharge, enhancing dielectric strength and mechanical durability
All-Climate Reliability
Excellent moisture-proof and anti-corrosion properties allow for reliable operation in 100% humidity and harsh environments without the need for pre-heating
Low-Noise & Maintenance-Free

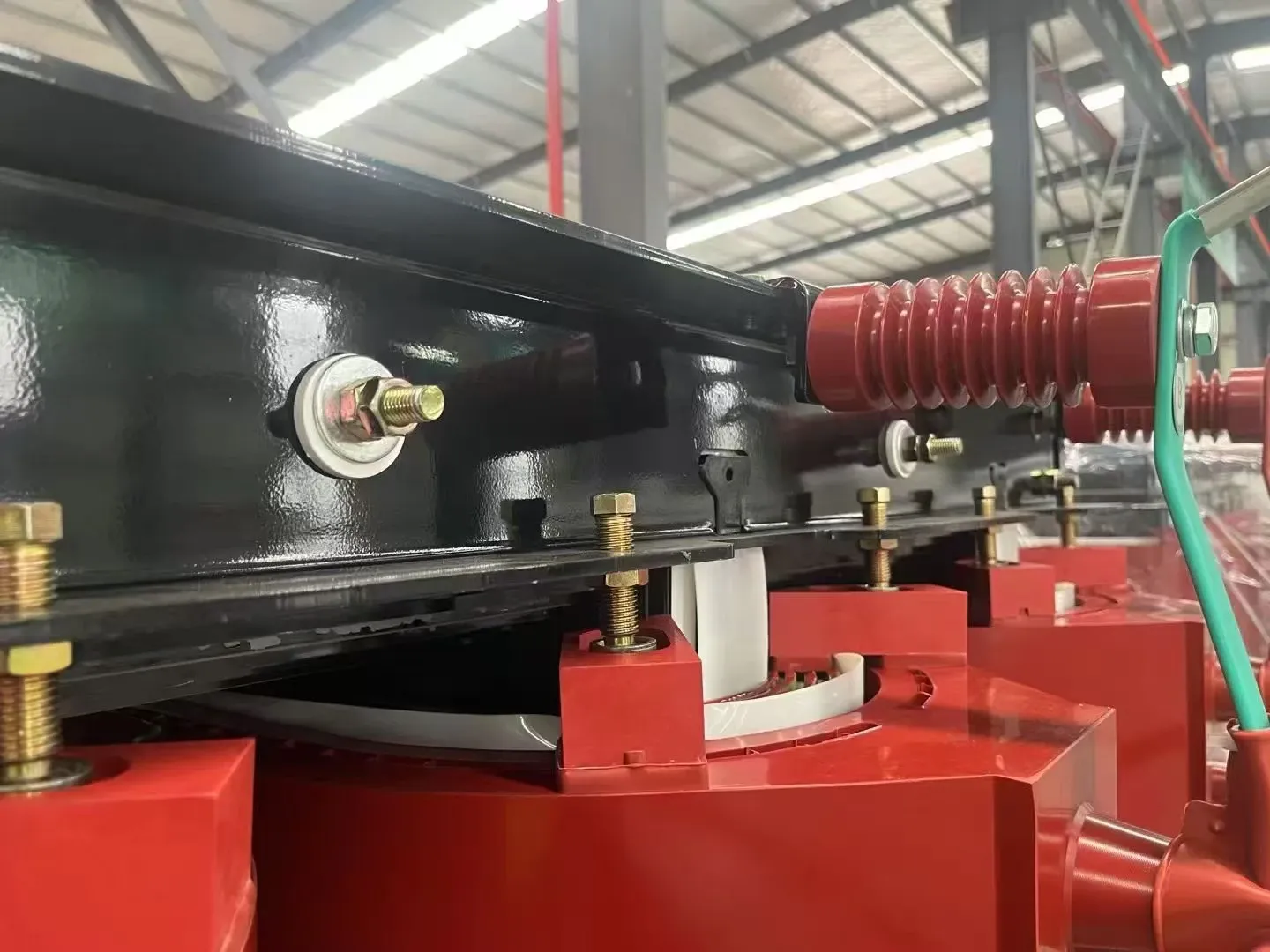

Precision core clamping and a solid-state design minimize vibration and noise while eliminating the need for oil changes or routine maintenance testing

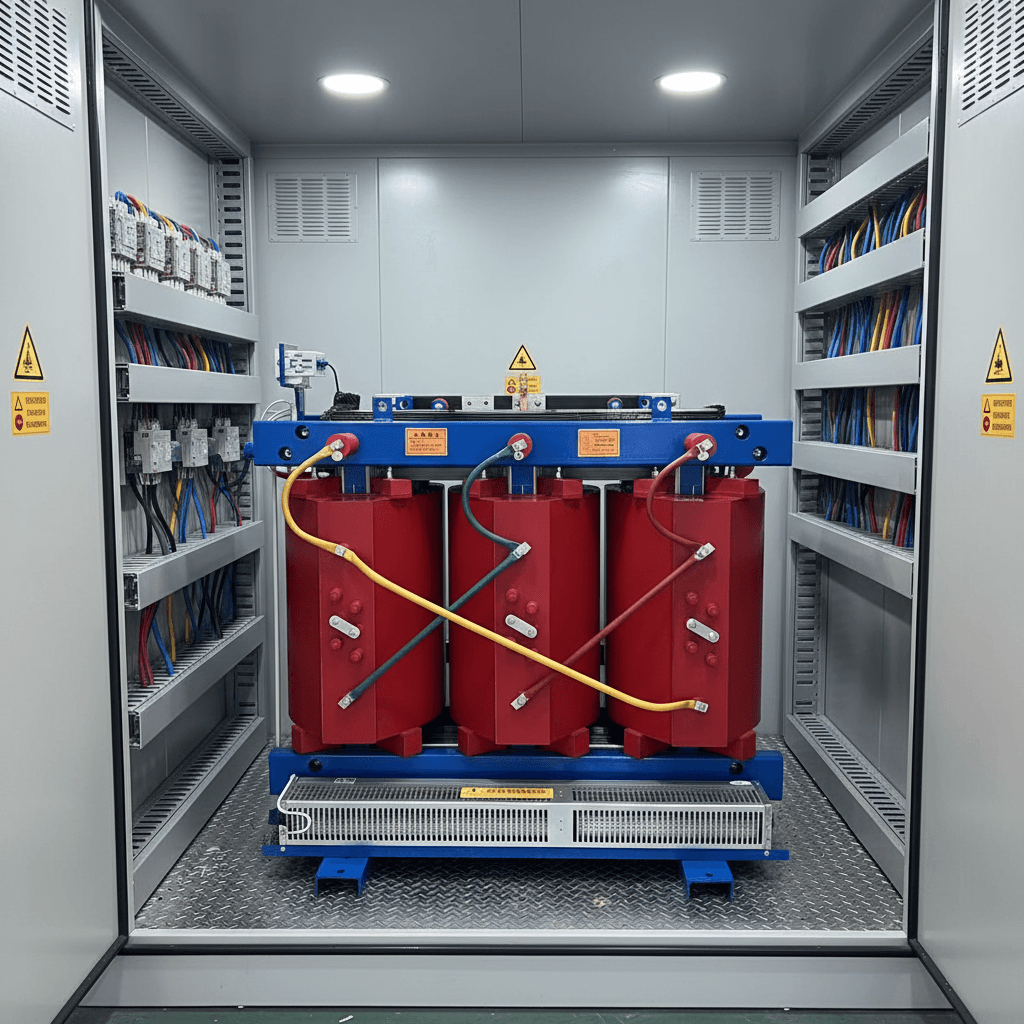

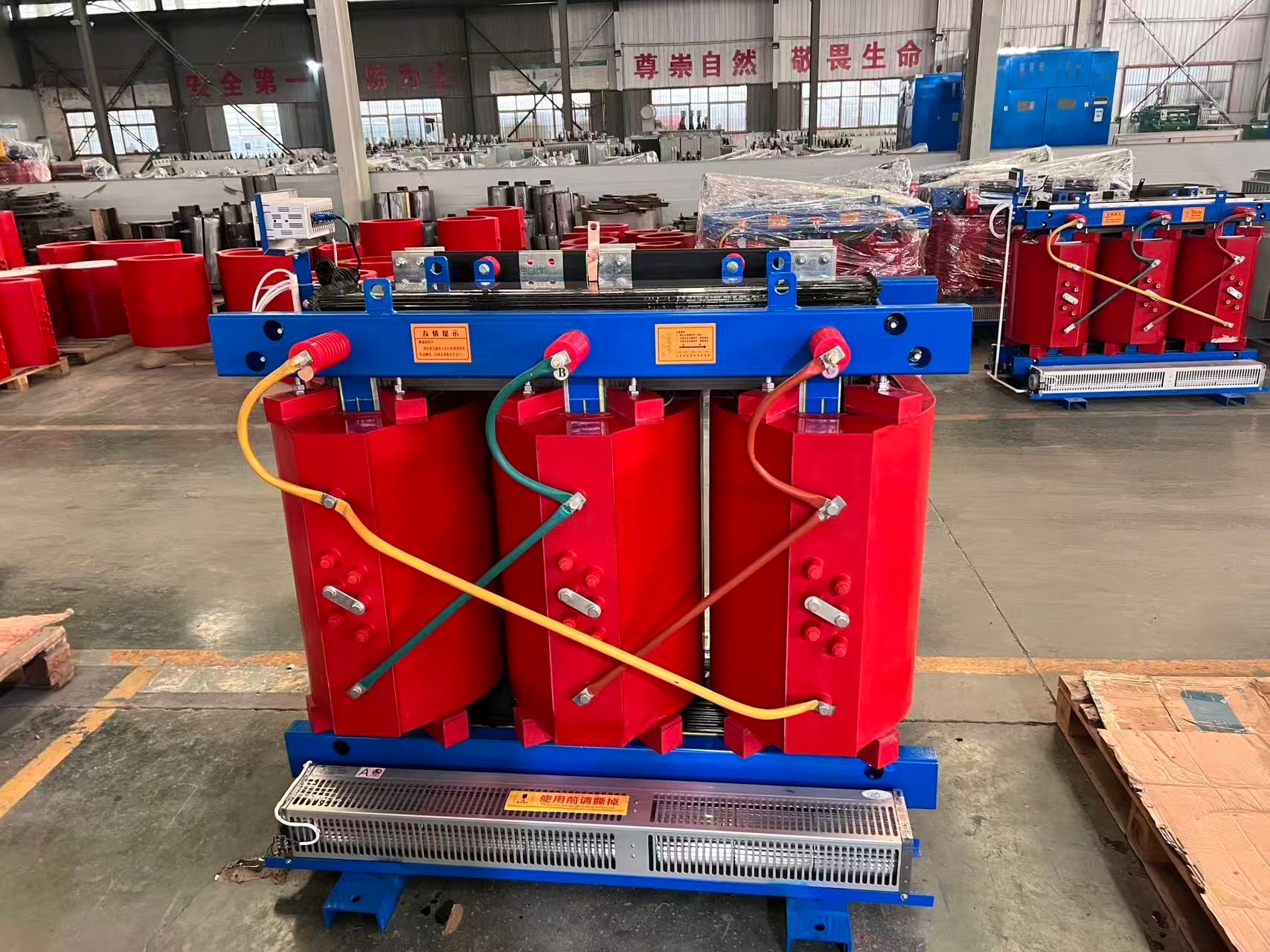

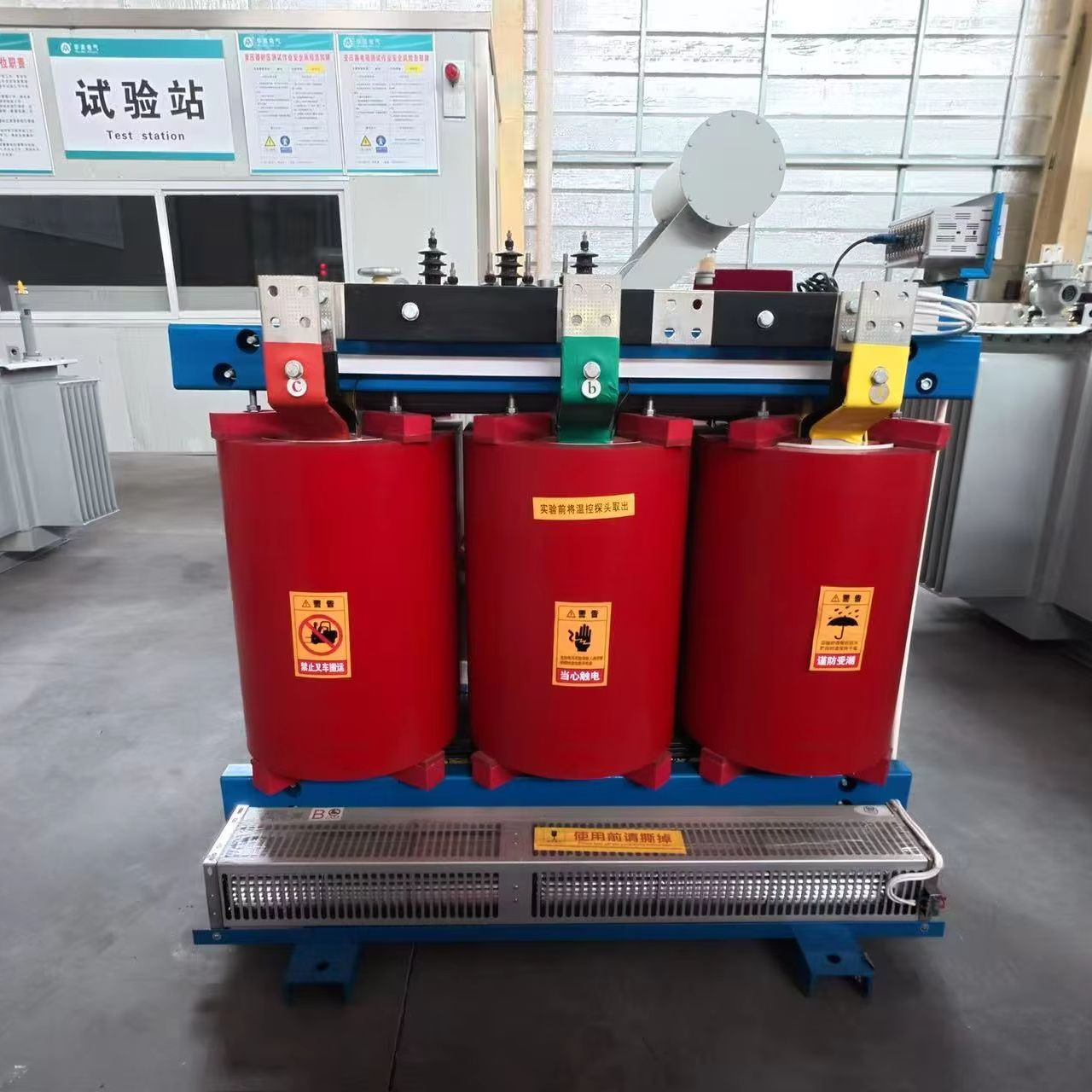

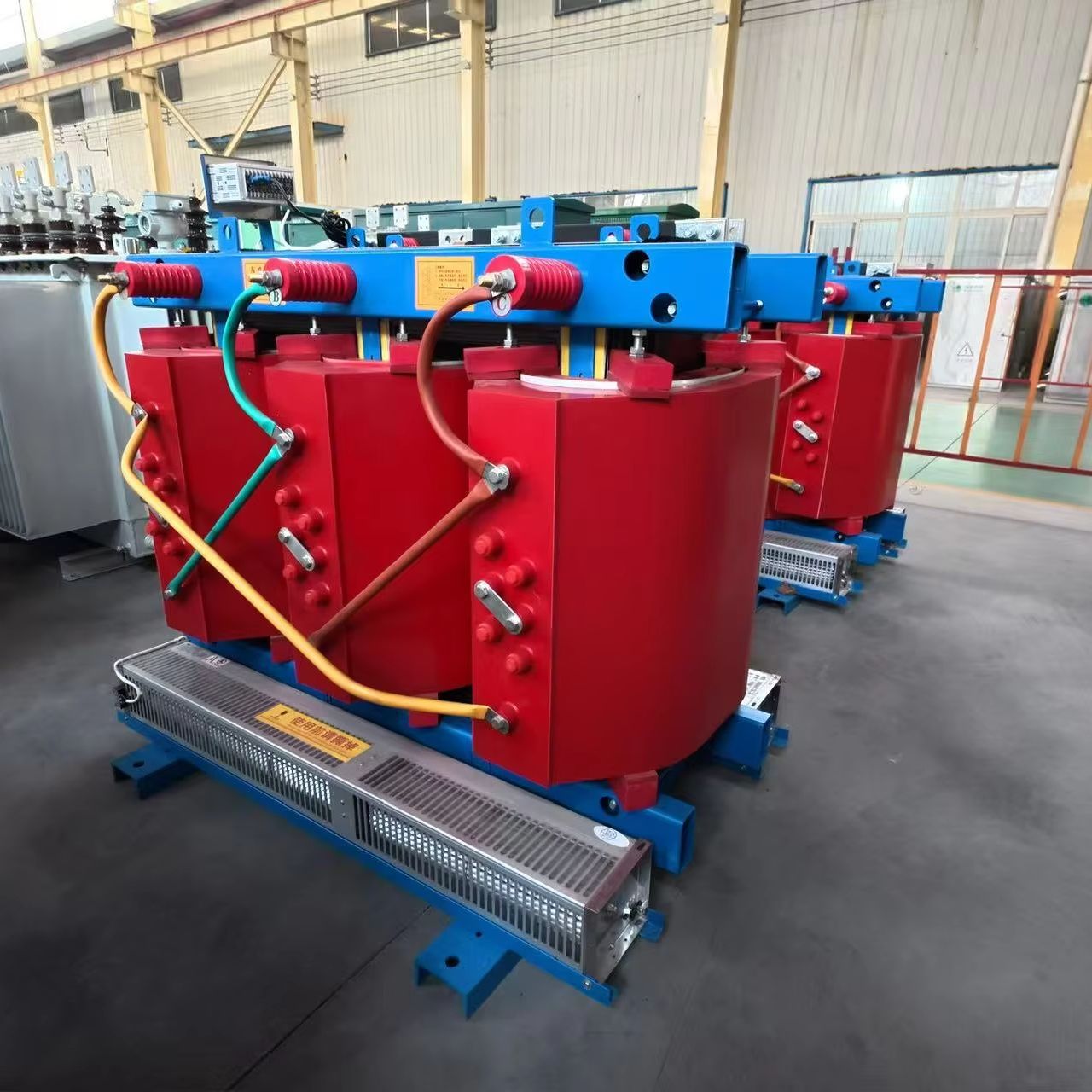

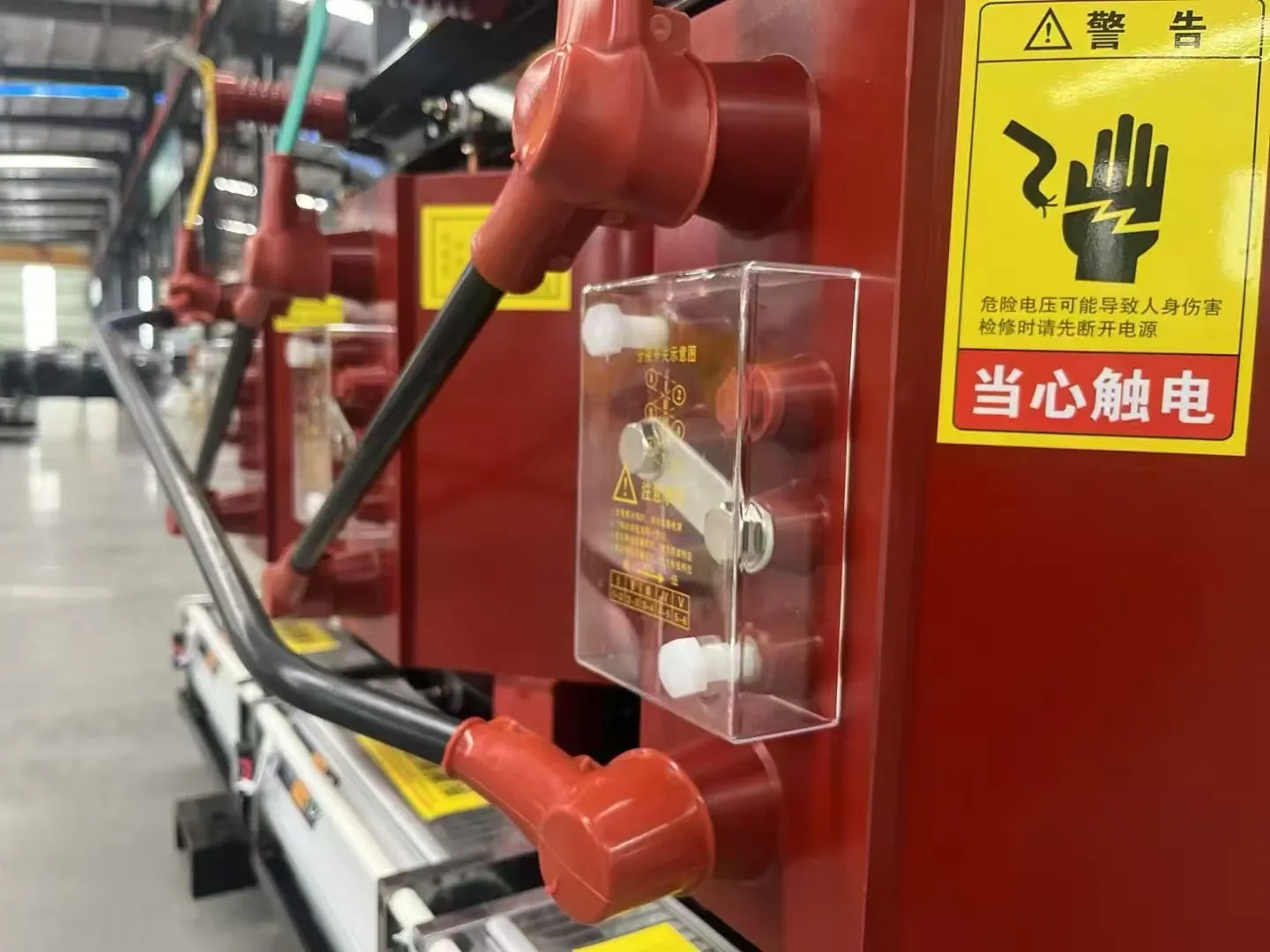

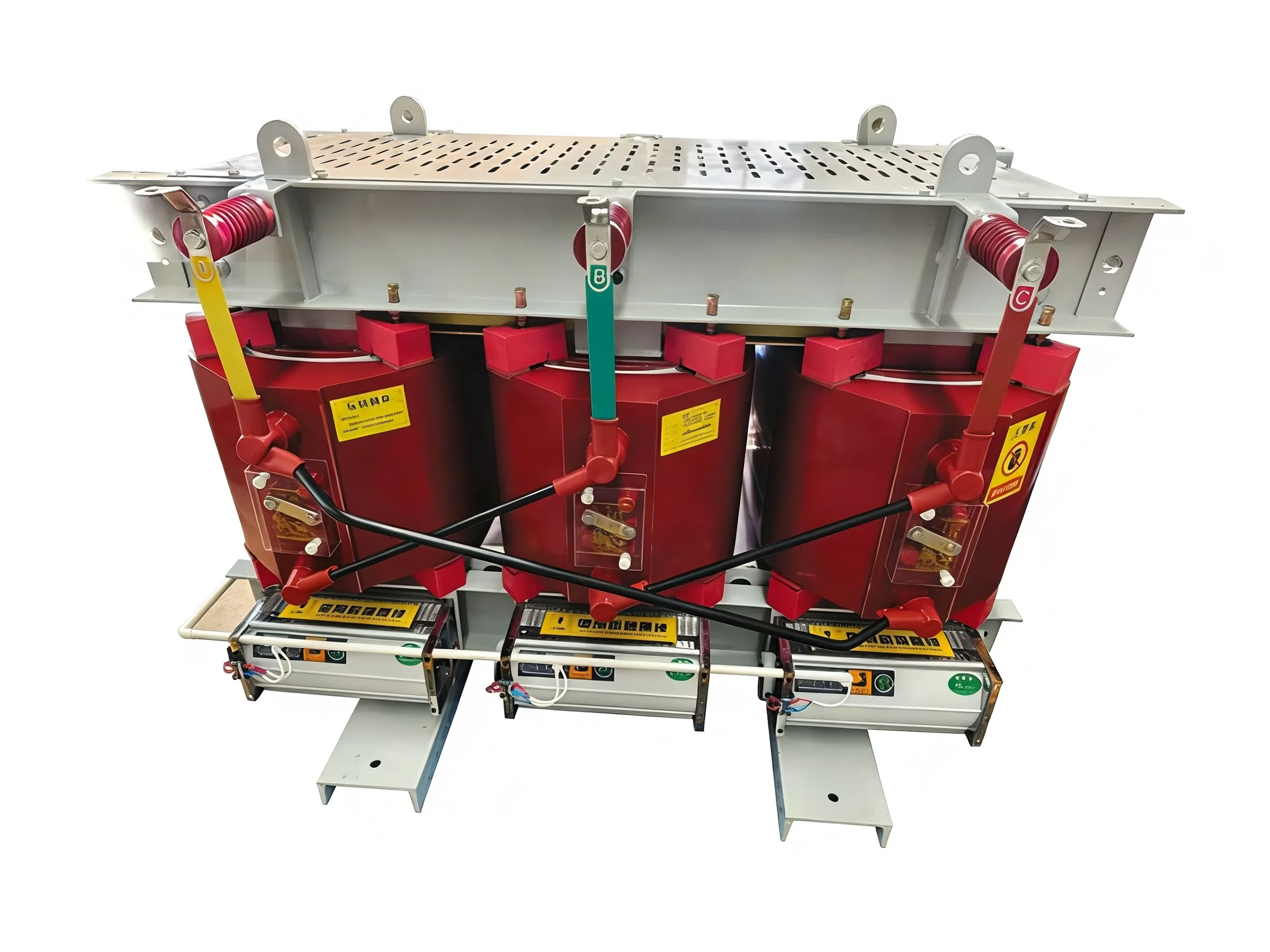

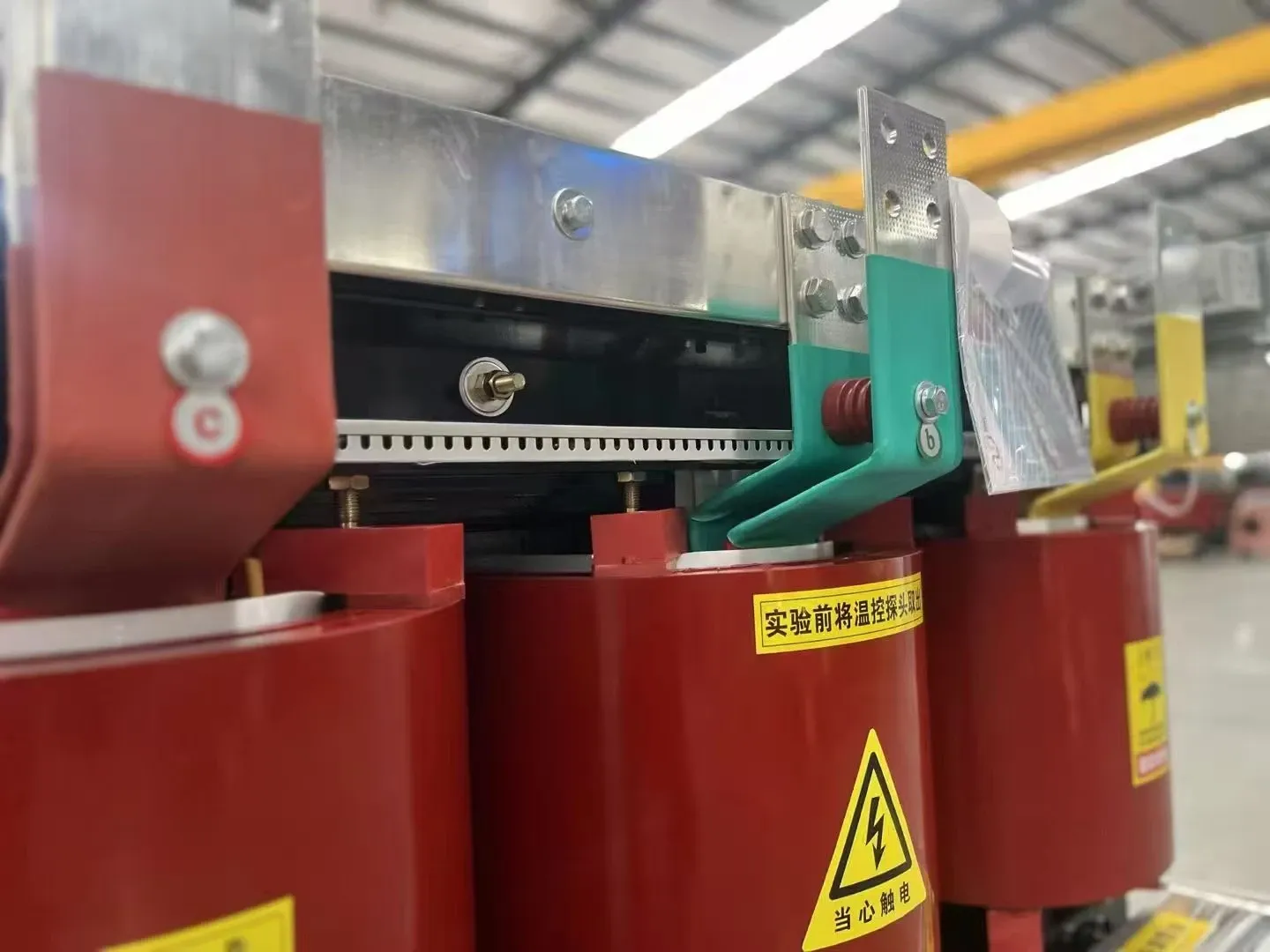

Detailed Display
Logistics Strategy
We understand that safe delivery is as important as the equipment itself. Every unit is securely fastened in reinforced wooden crates or heavy-duty sea-freight packaging to prevent any shifting during transit.
- ✓Moisture-proof vacuum sealing
- ✓Real-time GPS tracking for overseas
- ✓Pre-export factory FAT report included
Expert FAQs
What is your standard delivery time?
For standard units, we can ship within 7 days. Customized configurations typically take 15-25 days.
Do you provide overseas installation support?
Yes, we offer on-site engineering supervision and online technical commissioning support for global projects.
Are your transformers compatible with smart grid systems?
Absolutely. We provide integrated intelligent monitoring systems for real-time load and health analysis.
What certifications do you hold?
Our factory is ISO 9001, ISO 14001 certified, and all products carry the CE mark and local grid compliance reports.
