XNG15 Series Metal-Clad Medium-Voltage Switchgear
High-efficiency XNG15 series medium-voltage switchgear. A robust, metal-clad power distribution solution offering enhanced arc resistance and reliable protection for 12kV power grids.
100% Pure Copper
Guaranteed premium copper windings for superior thermal performance and longevity.
7-Day Rapid Shipping
Industry-leading lead times to keep your infrastructure projects on schedule.
Detailed Description
Technical Parameters
| Series Model | XNG15-12 Series |
| Rated Voltage | 12 kV |
| Rated Current | 630A - 2500A |
| Breaking Capacity | 20kA / 25kA (3s) |
| Insulation Level | 42kV / 75kV (Power Freq / Lightning Impulse) |
| Protection Degree | IP4X (Enclosure) / IP2X (Compartment) |
| Standard Compliance | IEC 62271-200, GB/T 3906 |
Core Advantages
Robust Metal-Clad Structure
High-strength metal enclosure ensures excellent mechanical protection and electrical isolation between internal compartments
Enhanced Operational Safety
Advanced mechanical and electrical interlocking "five-prevention" system effectively prevents unauthorized or incorrect operations
Modular Withdrawable Design
High-precision handcart mechanism allows for easy insertion, withdrawal, and replacement of circuit breakers
Optimized Space Efficiency
Compact design minimizes substation footprint, providing high-density distribution in confined indoor environments
Reliable Environmental Adaptability
Designed to maintain high performance in varied industrial conditions, with excellent resistance to dust, moisture, and temperature fluctuations
Easy Installation & Maintenance
Simplified busbar connections and modular access points ensure quick commissioning and intuitive maintenance procedures

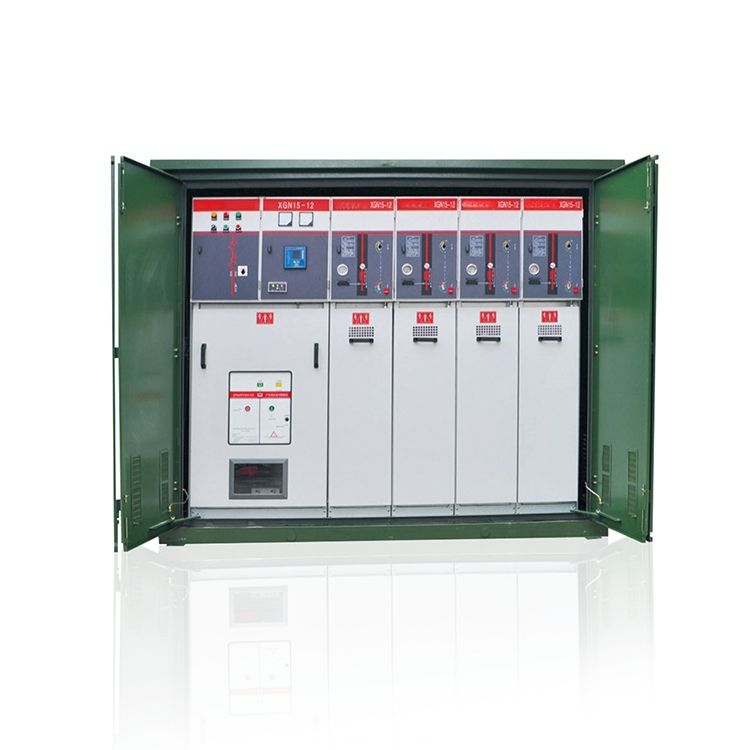

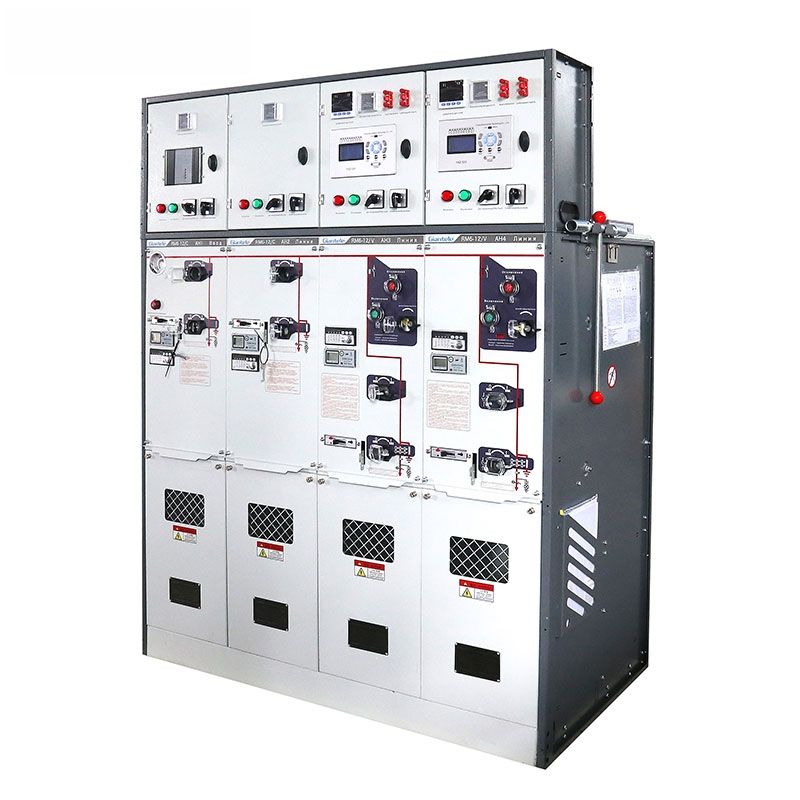

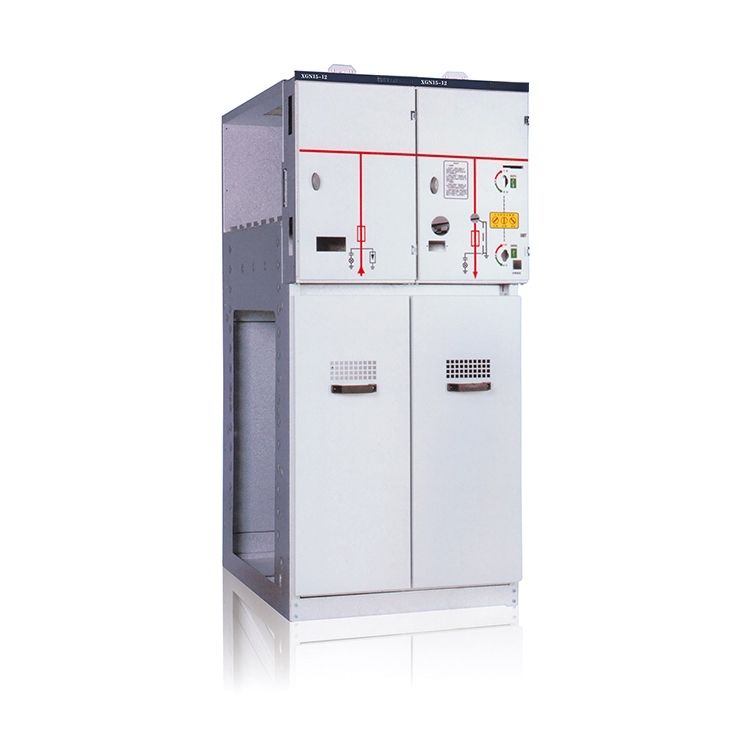

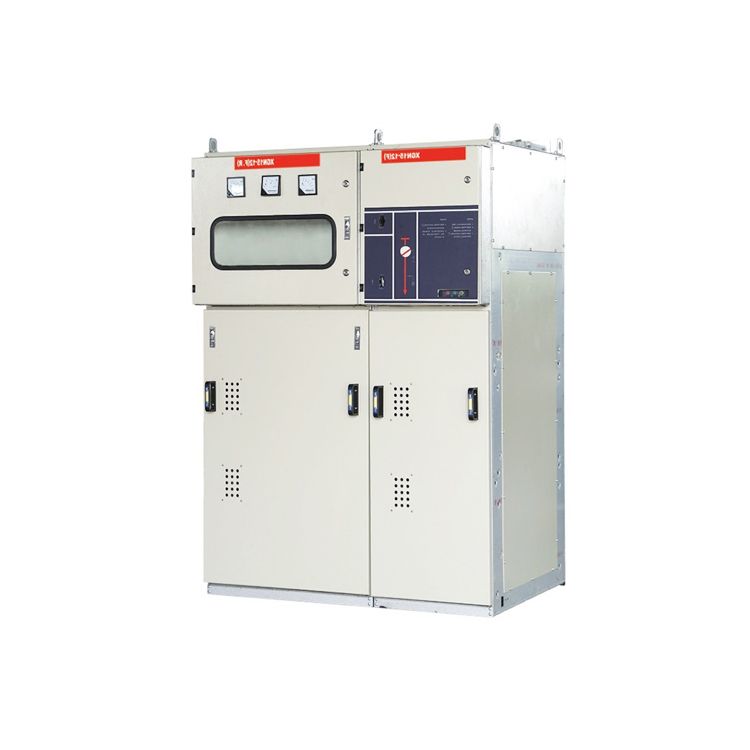

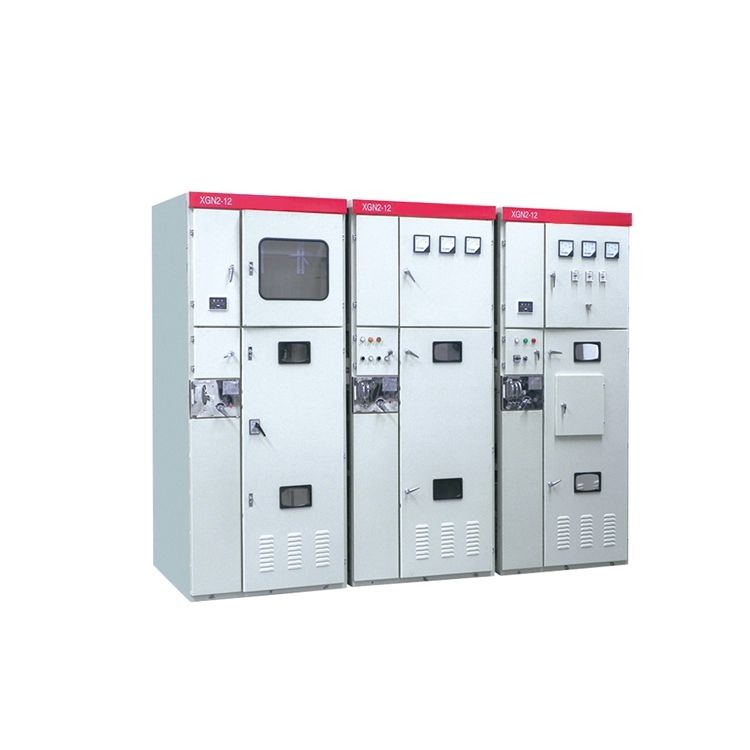

Detailed Display
Logistics Strategy
We understand that safe delivery is as important as the equipment itself. Every unit is securely fastened in reinforced wooden crates or heavy-duty sea-freight packaging to prevent any shifting during transit.
- ✓Moisture-proof vacuum sealing
- ✓Real-time GPS tracking for overseas
- ✓Pre-export factory FAT report included
Expert FAQs
What is your standard delivery time?
For standard units, we can ship within 7 days. Customized configurations typically take 15-25 days.
Do you provide overseas installation support?
Yes, we offer on-site engineering supervision and online technical commissioning support for global projects.
Are your transformers compatible with smart grid systems?
Absolutely. We provide integrated intelligent monitoring systems for real-time load and health analysis.
What certifications do you hold?
Our factory is ISO 9001, ISO 14001 certified, and all products carry the CE mark and local grid compliance reports.
