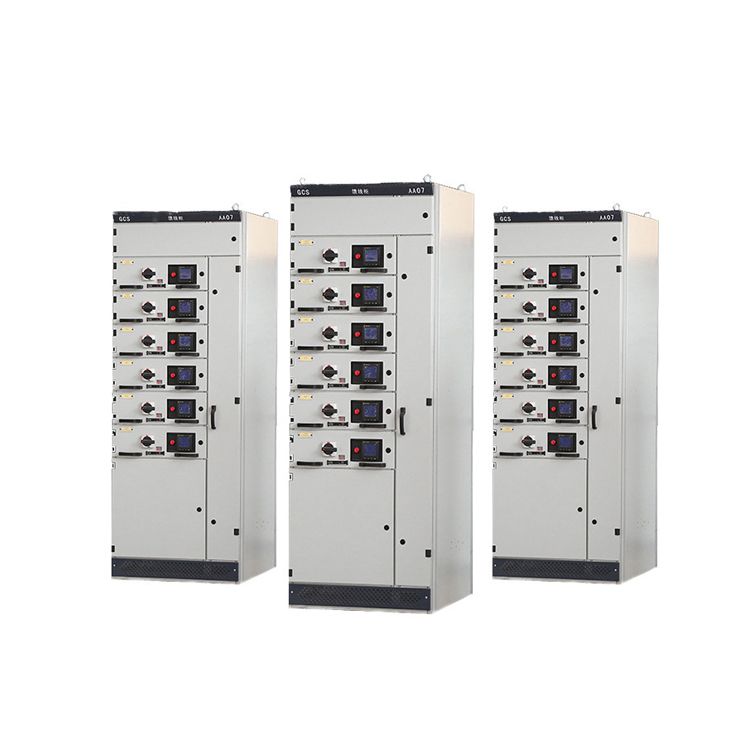

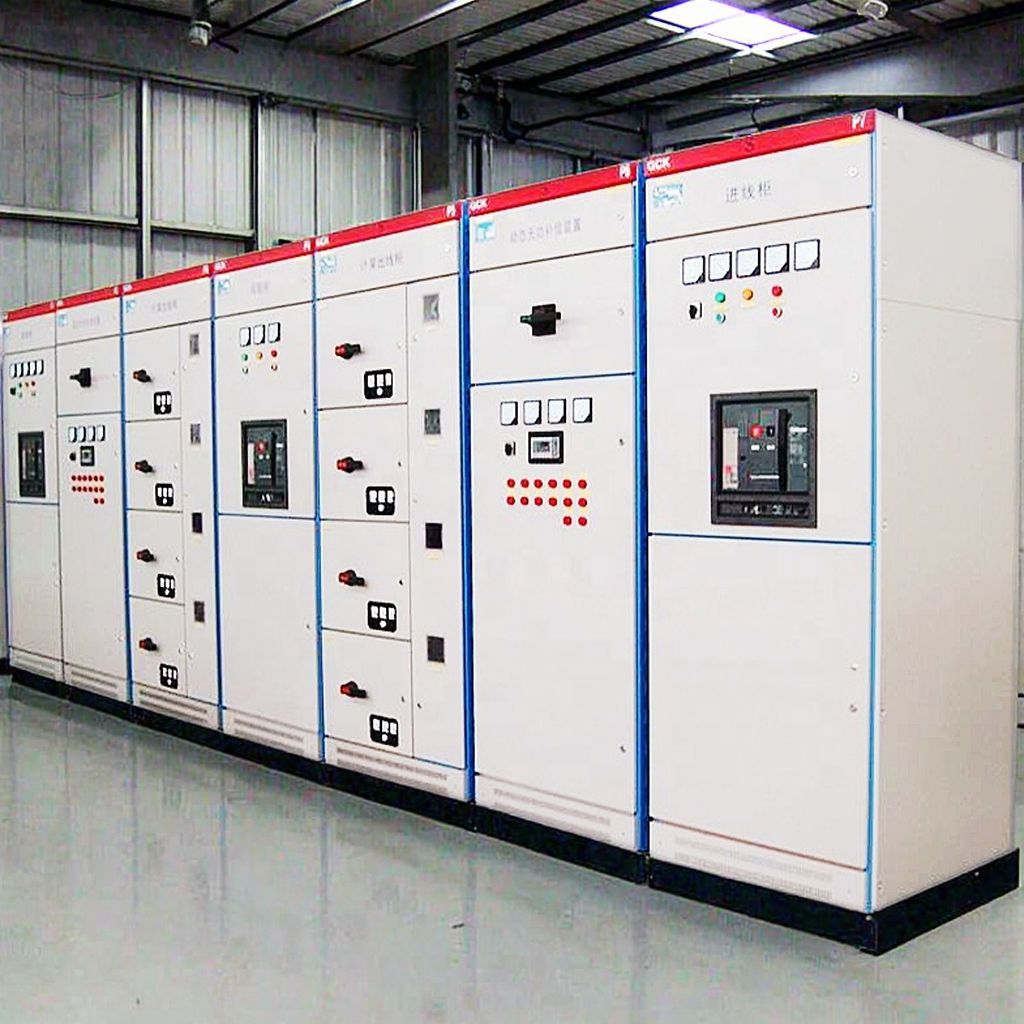

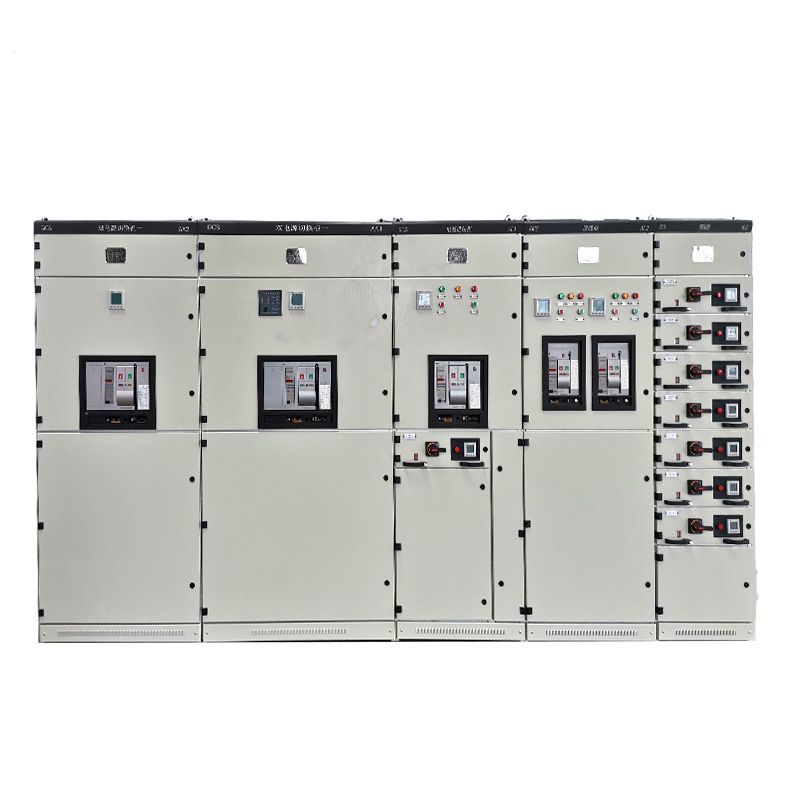

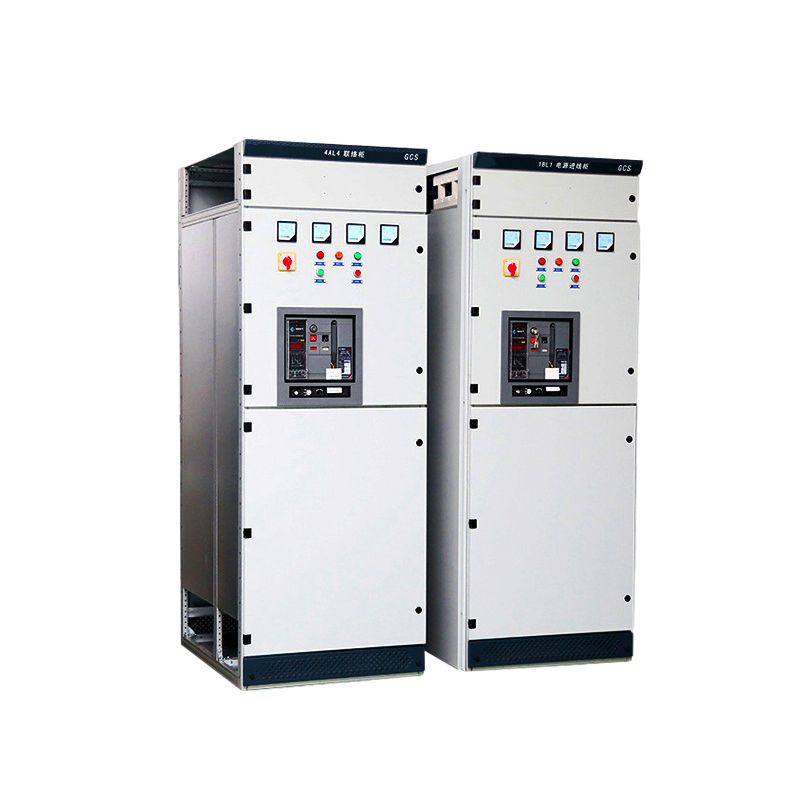

GCS Low-Voltage Withdrawable Switchgear (Power Distribution Cabinet)
High-performance GCS low-voltage withdrawable switchgear. Designed for superior reliability and safety in large-scale power distribution, featuring a high-density modular structure for easy maintenance and expansion
100% Pure Copper
Guaranteed premium copper windings for superior thermal performance and longevity.
7-Day Rapid Shipping
Industry-leading lead times to keep your infrastructure projects on schedule.
Detailed Description
Technical Parameters
| Rated Operational Voltage | AC 380V, 400V, 660V |
| Rated Insulation Voltage | AC 660V (1000V) |
| Rated Frequency | 50Hz / 60Hz |
| Main Busbar Current | Up to 4000A / 6300A |
| Short-time Withstand Current | 50kA / 80kA (1s) |
| Vertical Busbar Current | 1000A |
| Protection Degree | IP30 / IP40 |
| Control Mode | Withdrawable (Drawer-type) |
| Compliance | IEC 61439-2, GB/T 7251 |
Core Advantages
High-Density Modular Design
Optimized structural arrangement allows for a higher number of functional units per cabinet, significantly saving floor space in substations
Excellent Reliability & Safety
Features advanced "three-phase" isolation and multiple interlocking safety mechanisms to prevent operational errors and arc faults

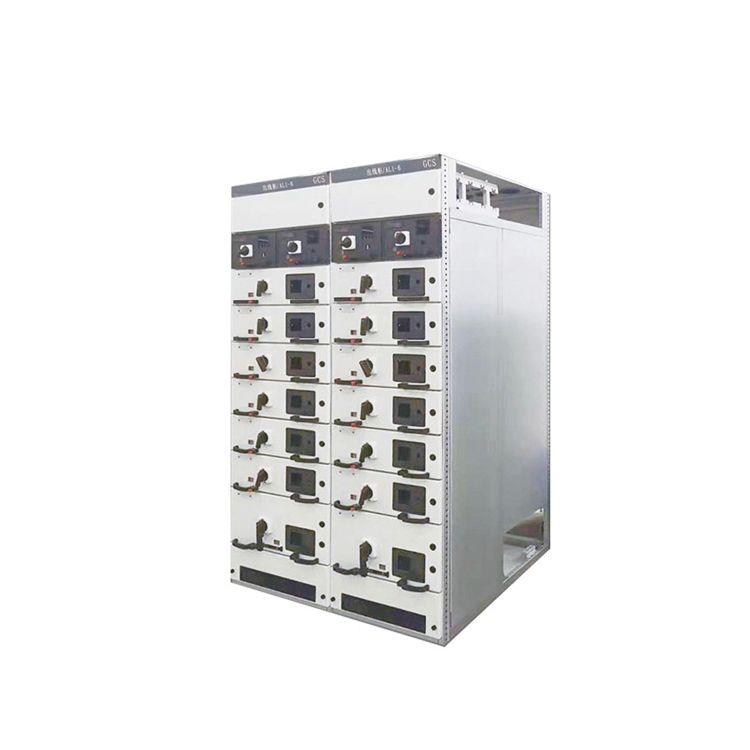

Flexible Withdrawable Units
High-precision drawer units ensure smooth insertion/withdrawal and reliable electrical contact, supporting quick system maintenance
Robust Industrial Housing

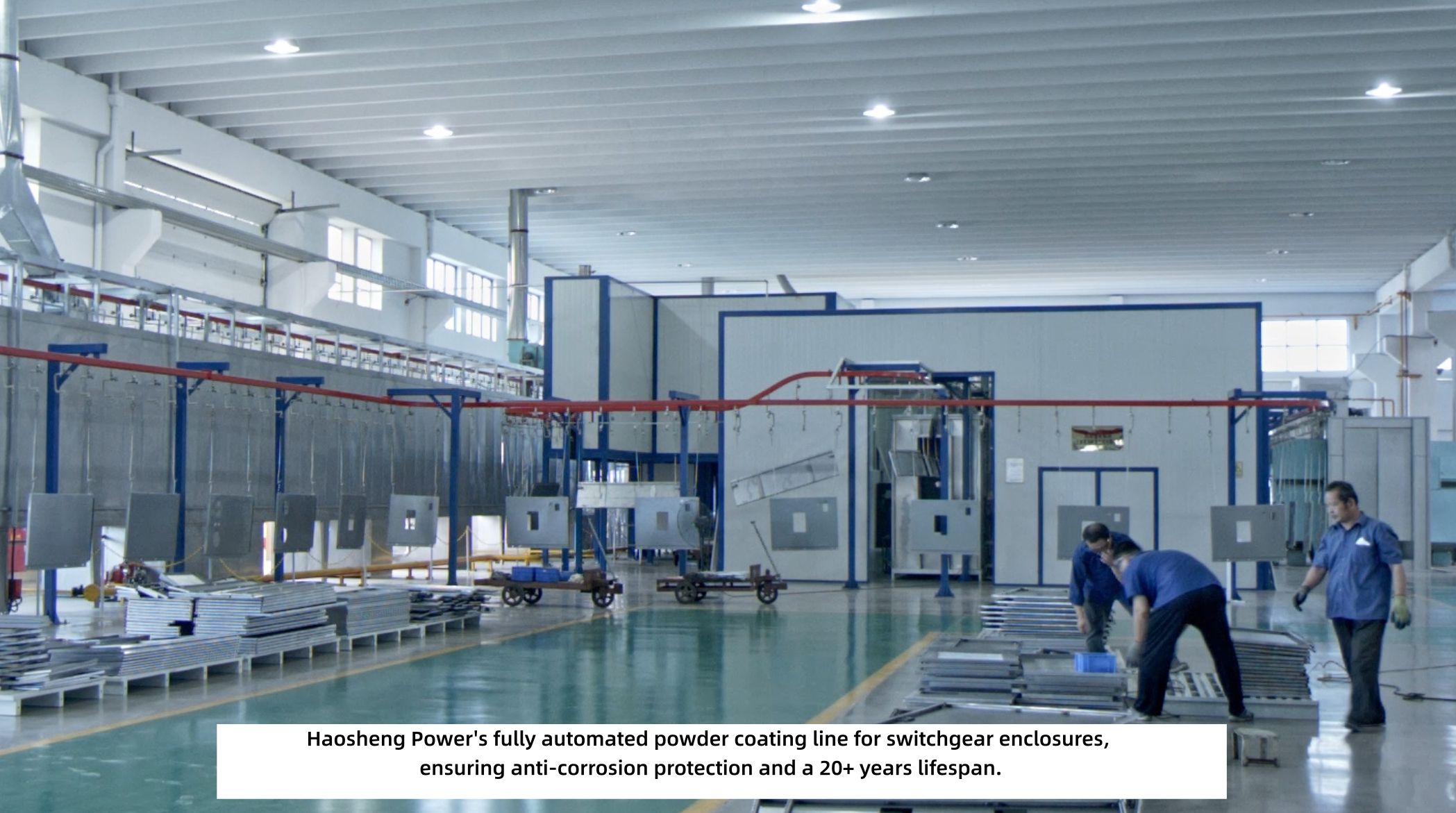

High-strength steel plate construction with advanced anti-corrosion finish provides long-term protection in demanding industrial settingsC
High-Capacity Main Busbar
Supports main busbar current up to 4000A/6300A, ensuring stable and efficient power transmission for large-scale facilities
International Standard Compliance
Engineered to meet strict global safety standards (IEC 61439), guaranteeing reliable performance for international power projects

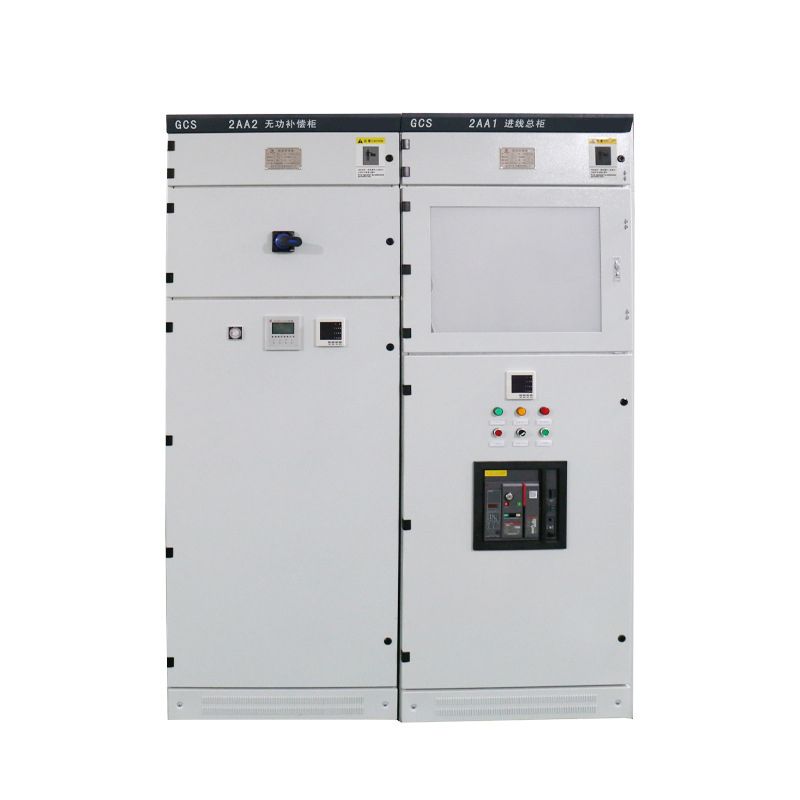

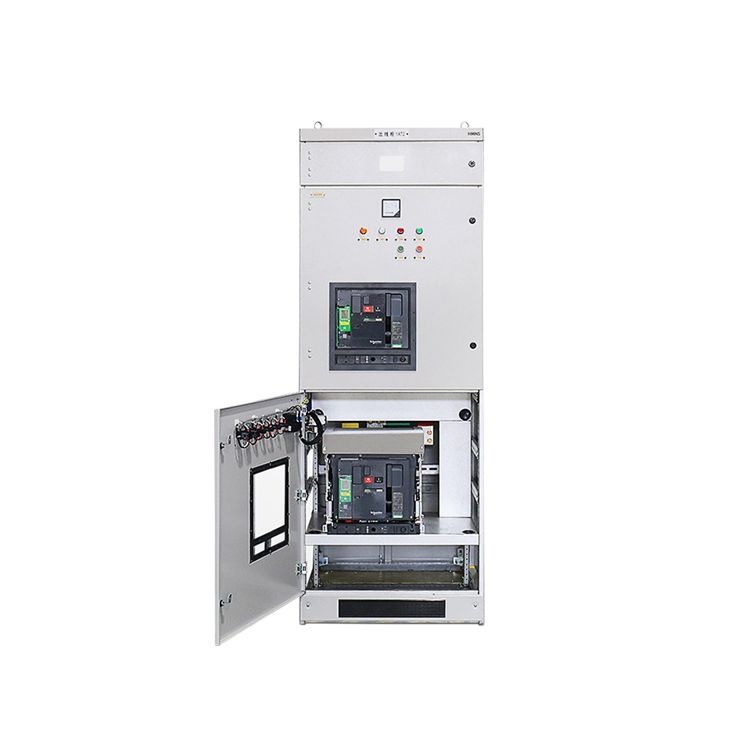

Detailed Display
Logistics Strategy

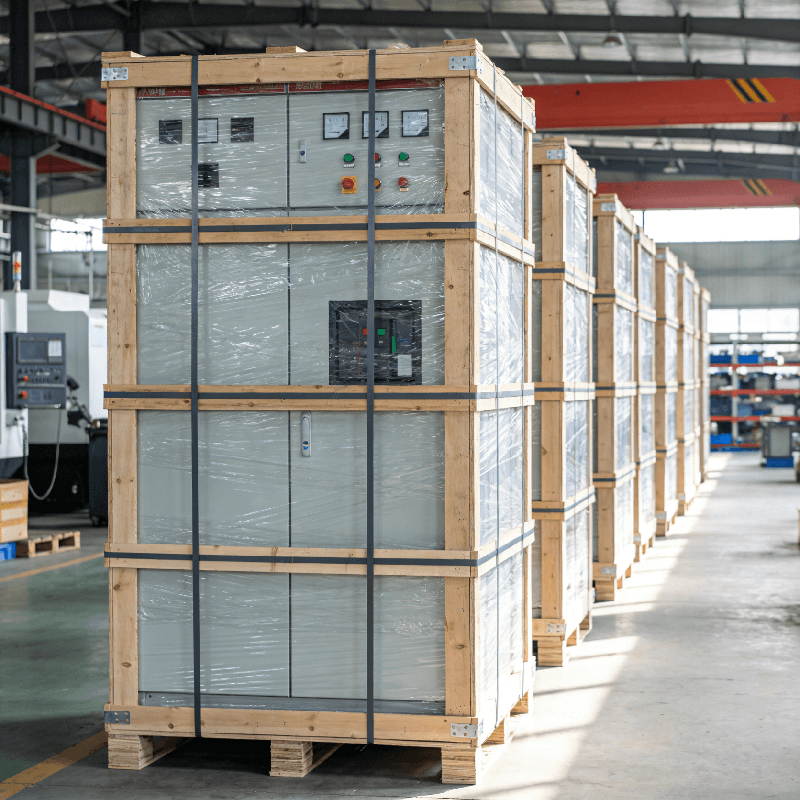

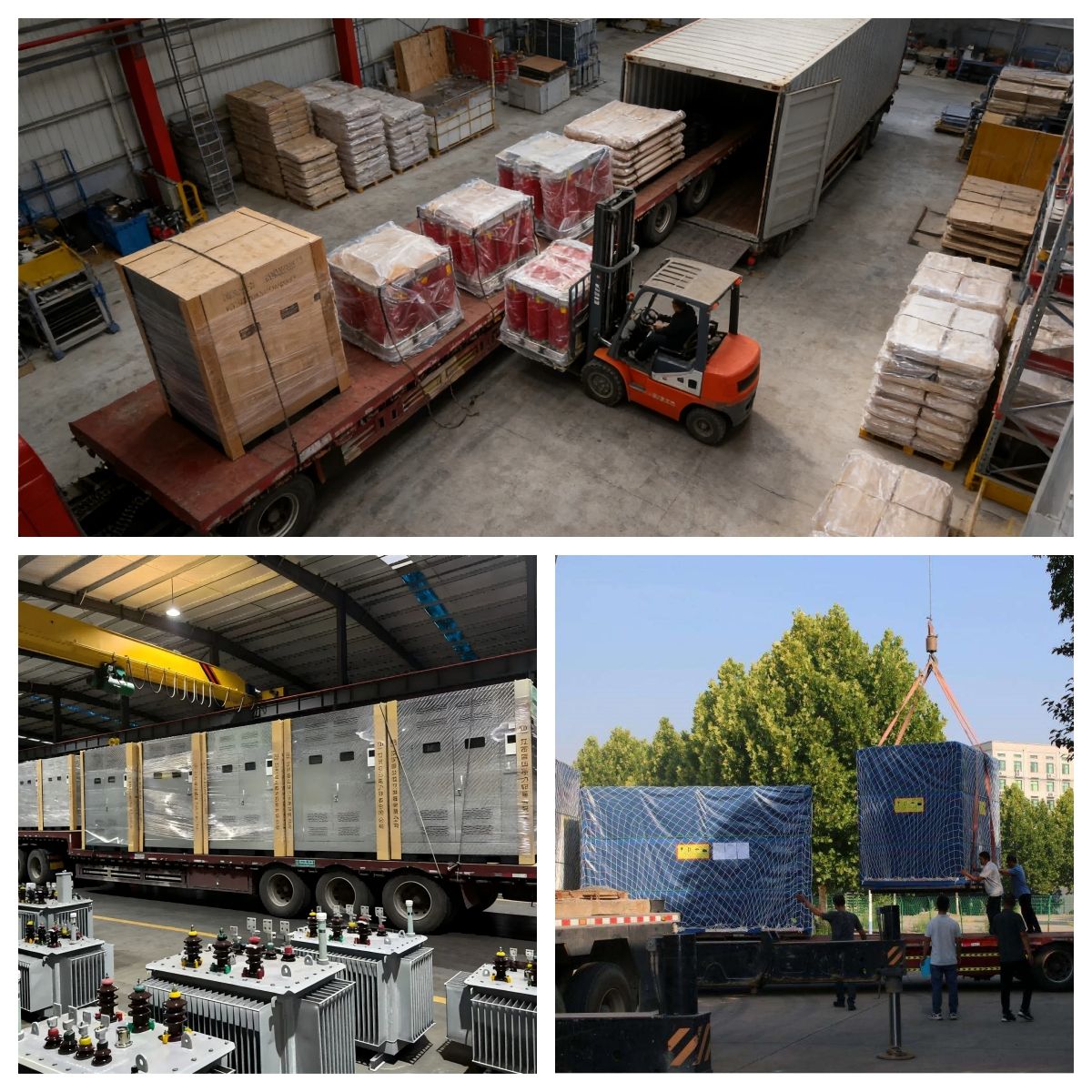

We understand that safe delivery is as important as the equipment itself. Every unit is securely fastened in reinforced wooden crates or heavy-duty sea-freight packaging to prevent any shifting during transit.
- ✓Moisture-proof vacuum sealing
- ✓Real-time GPS tracking for overseas
- ✓Pre-export factory FAT report included
Expert FAQs
What is your standard delivery time?
For standard units, we can ship within 7 days. Customized configurations typically take 15-25 days.
Do you provide overseas installation support?
Yes, we offer on-site engineering supervision and online technical commissioning support for global projects.
Are your transformers compatible with smart grid systems?
Absolutely. We provide integrated intelligent monitoring systems for real-time load and health analysis.
What certifications do you hold?
Our factory is ISO 9001, ISO 14001 certified, and all products carry the CE mark and local grid compliance reports.
