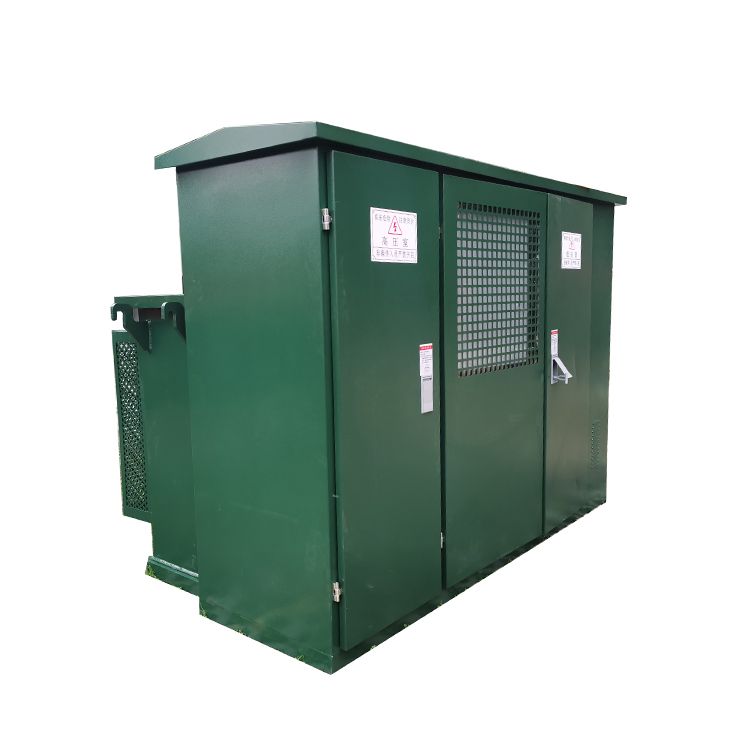

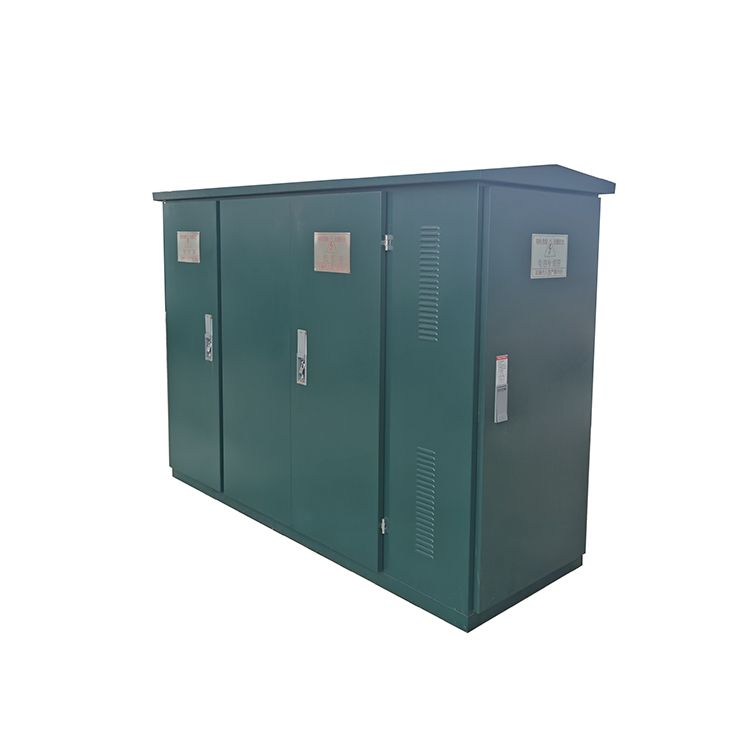

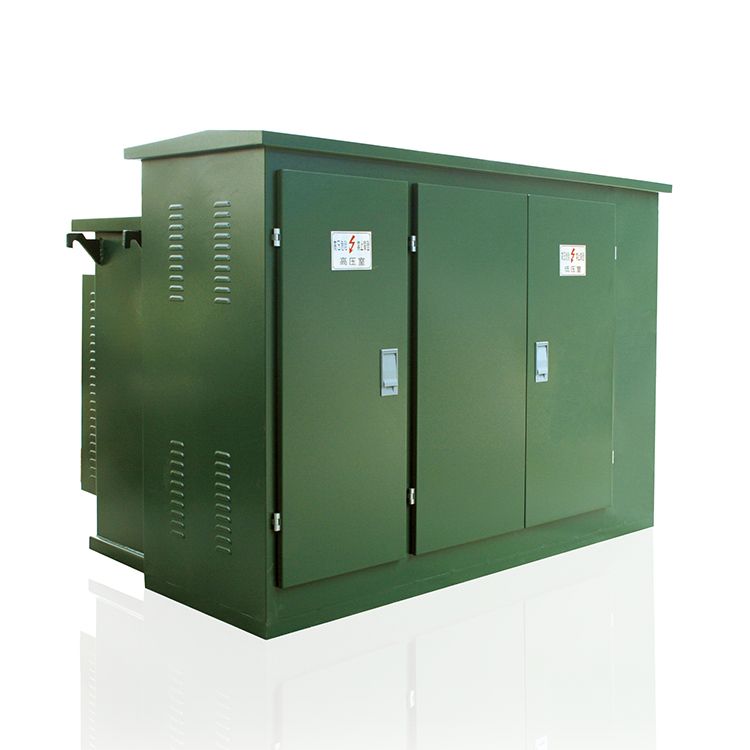

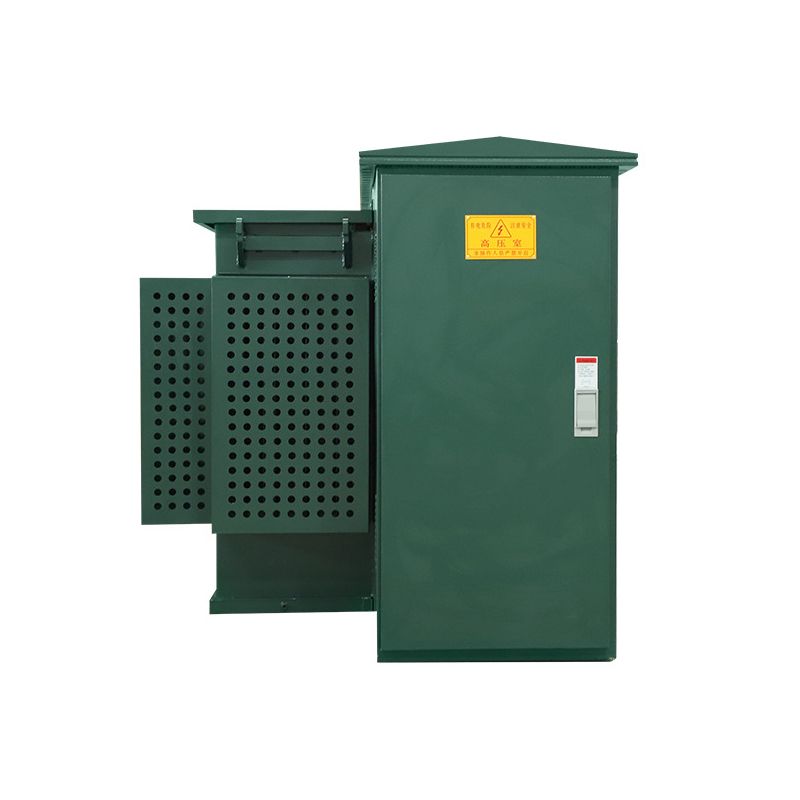

American-Style Pad-Mounted Transformer Substation (12kV/24kV)
Compact, low-profile American-style pad-mounted transformer substation. An aesthetic and efficient solution for urban landscaping and residential power distribution, featuring integrated HV/LV controls
100% Pure Copper
Guaranteed premium copper windings for superior thermal performance and longevity.
7-Day Rapid Shipping
Industry-leading lead times to keep your infrastructure projects on schedule.
Detailed Description
Technical Parameters
| Series Model | American-Style Pad-Mounted Series |
| Rated Voltage | 10kV / 11kV / 13.8kV / 24kV |
| Rated Capacity | 50 kVA - 3500 kVA |
| Cooling Method | ONAN (Oil Natural Air Natural) |
| Protection Degree | IP33 (Tamper-proof) |
| Insulation Medium | Mineral Oil / Vegetable-based Oil |
| Standard Compliance | IEC 62271-202, IEEE C57.12.34 |
Core Advantages
Low-Profile Aesthetic Design
The sleek, compact silhouette minimizes visual obstruction, making it ideal for integration into landscaping and residential surroundings
All-in-One Integrated Cabinet

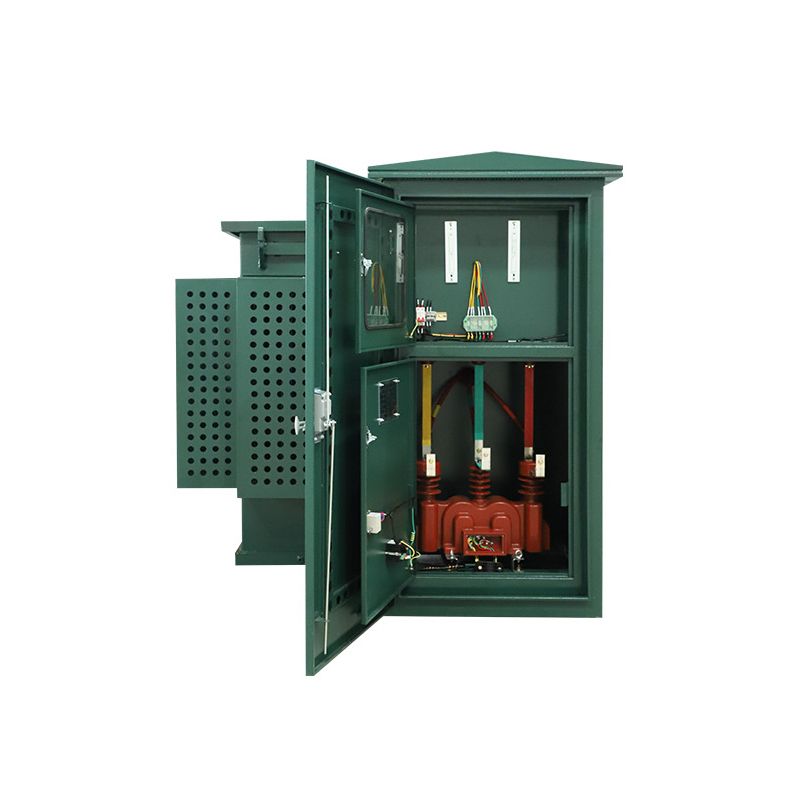

Combines the transformer, high-voltage load-break switches, and low-voltage protection into a single, cohesive, and secure unit
Superior Safety Protection
Fully enclosed construction prevents unauthorized access, with robust interlocks protecting against accidental contact or tampering
Simplified Pad-Mount Installation
Requires only a simple concrete base for installation, significantly reducing civil engineering costs and site preparation time
High-Performance Insulation
Utilizes high-grade oil or eco-friendly insulating fluids and advanced winding technology for maximum operational lifespan
Environmental Durability
Advanced multi-layer anti-corrosion coating guarantees long-lasting performance in both coastal and inland environmental conditions
Detailed Display
Logistics Strategy
We understand that safe delivery is as important as the equipment itself. Every unit is securely fastened in reinforced wooden crates or heavy-duty sea-freight packaging to prevent any shifting during transit.
- ✓Moisture-proof vacuum sealing
- ✓Real-time GPS tracking for overseas
- ✓Pre-export factory FAT report included
Expert FAQs
What is your standard delivery time?
For standard units, we can ship within 7 days. Customized configurations typically take 15-25 days.
Do you provide overseas installation support?
Yes, we offer on-site engineering supervision and online technical commissioning support for global projects.
Are your transformers compatible with smart grid systems?
Absolutely. We provide integrated intelligent monitoring systems for real-time load and health analysis.
What certifications do you hold?
Our factory is ISO 9001, ISO 14001 certified, and all products carry the CE mark and local grid compliance reports.

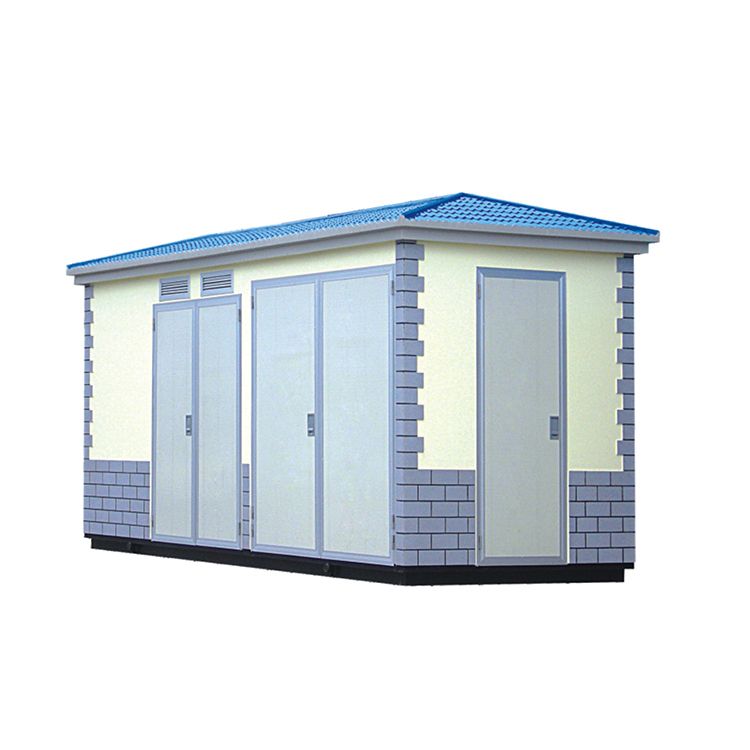

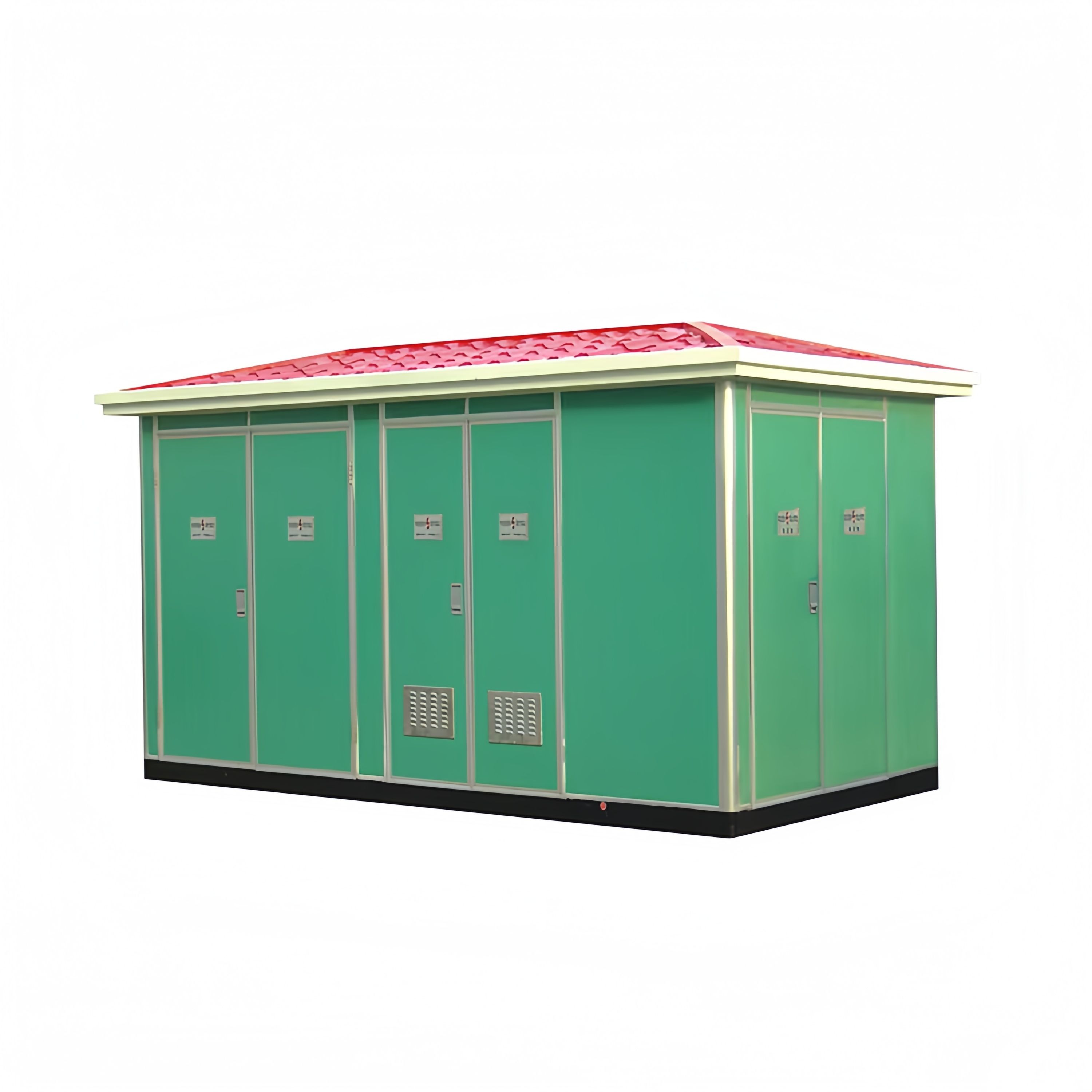

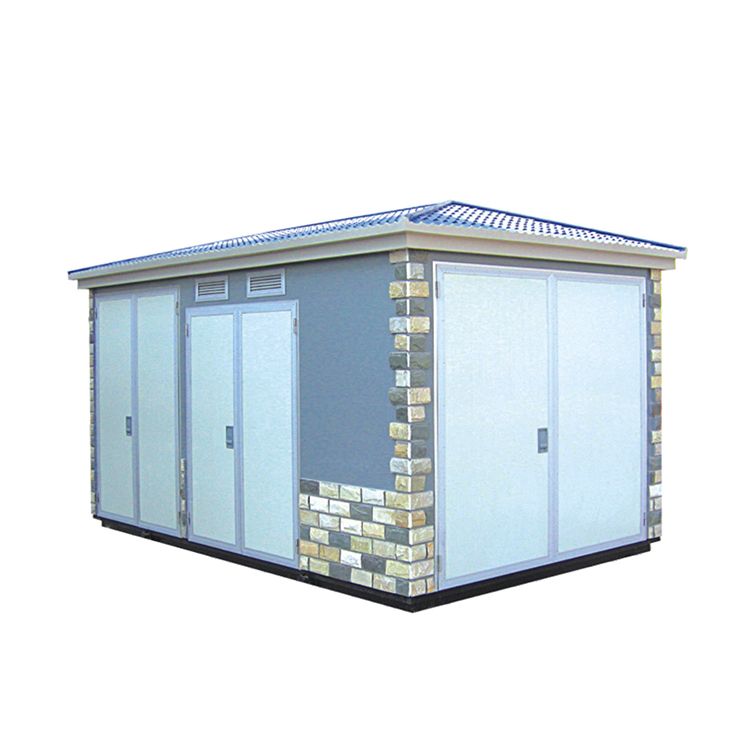

Recommended
